Power Amp vs. Preamp: Can One Replace the Other?

Using a power amp as a preamp seems logical but can cripple your system. This choice will drown weak signals in noise, making them impossible to recover.

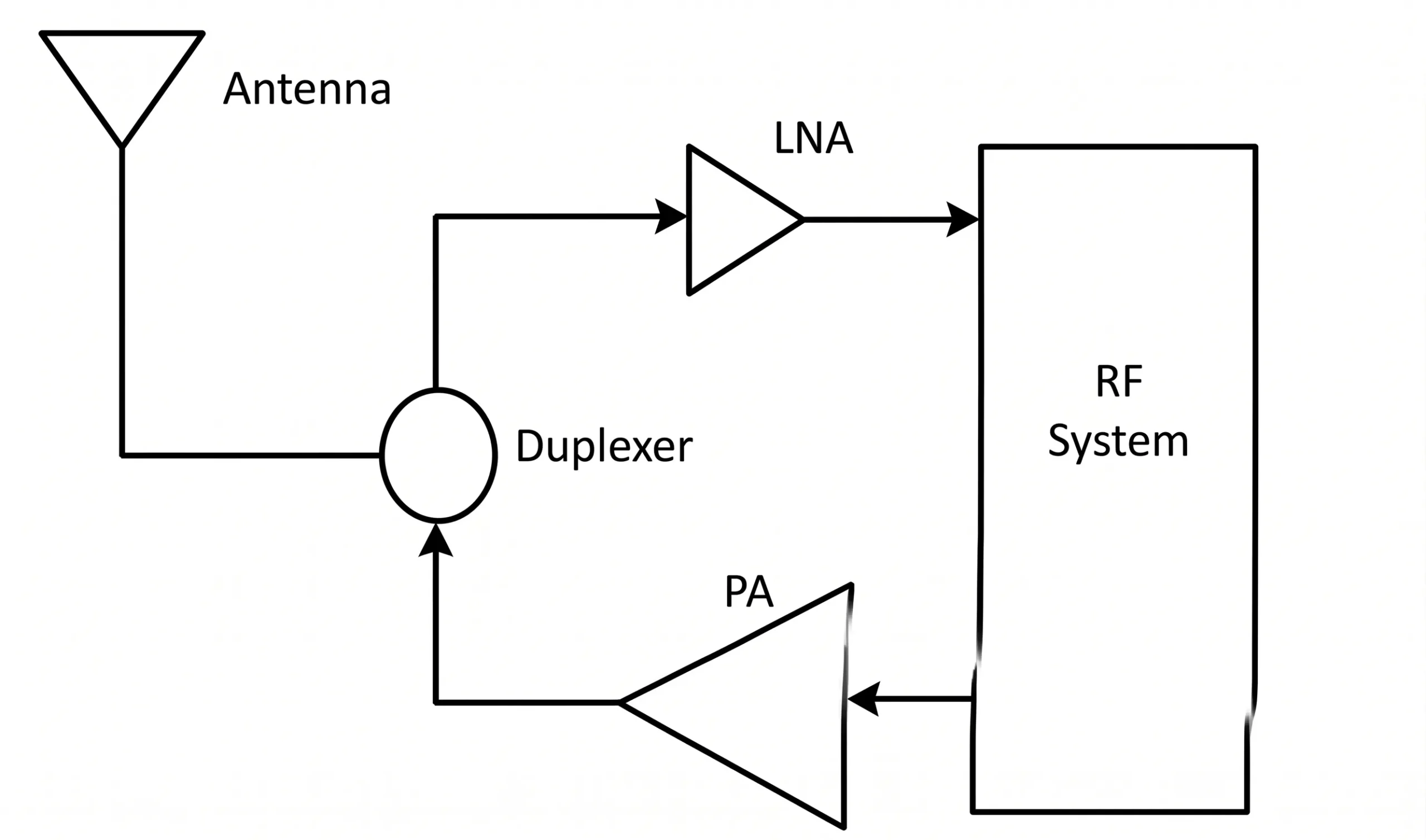

No, you should never use a power amplifier as a preamp. A power amp has a very high noise figure¹, designed for output power, not sensitivity. Using one would add so much noise that it would overwhelm the weak incoming signal, destroying the receiver's performance.

It's a question I've heard before, even from my own sales team. They'll ask, "It's an amplifier, and the gain is there, so why not?" I always tell them the same thing: it would be a disaster. The tiny, precious signal you're trying to receive would be completely lost in a sea of noise. Once that happens, no amount of digital signal processing can save it. Let's break down why these two types of amplifiers are fundamentally different and serve opposite roles in a system.

Why Does a Power Amp Have Such a High Noise Figure?

Your power amp gives you a huge signal boost. But placing it at the front of a receiver adds so much unwanted noise. This noise makes your receiver deaf.

A power amplifier is engineered for maximum power output and efficiency, not for low noise operation. Its internal components are set up to handle large signals, a process that naturally creates a lot of internal electronic noise, leading to a high noise figure (NF).

When I think about this, I see a clear design trade-off. You can't have it all in one device. An amplifier is either optimized for power or for sensitivity.

Focus on Power, Not Purity

A power amplifier's main job is to take a signal and make it as powerful as possible for transmission. To do this efficiently, its transistors are often operated in non-linear modes². This approach saves power and reduces heat, but it is also very noisy. It's like a megaphone. A megaphone makes your voice very loud, but it also adds distortion and hiss. You wouldn't use a megaphone to try and listen for a faint sound.

The Critical Role of Noise Figure

The key specification here is the Noise Figure, or NF. Noise Figure tells you exactly how much noise an amplifier adds to the signal passing through it³. A perfect, noiseless amplifier would have an NF of 0 dB. In the real world, a power amplifier might have an NF of 10 dB or even higher⁴. A preamplifier, specifically a Low-Noise Amplifier (LNA), is designed for the opposite goal. At Safari Microwave, our LNAs can achieve a noise figure as low as 0.5 dB, which is essential for hearing the weakest signals.

Here is a simple table to show the difference:

How Does a High Noise Figure Affect the Whole System?

You placed a noisy amplifier at the start of your receiver. Now, your entire system's performance has collapsed. Your sensitivity is gone.

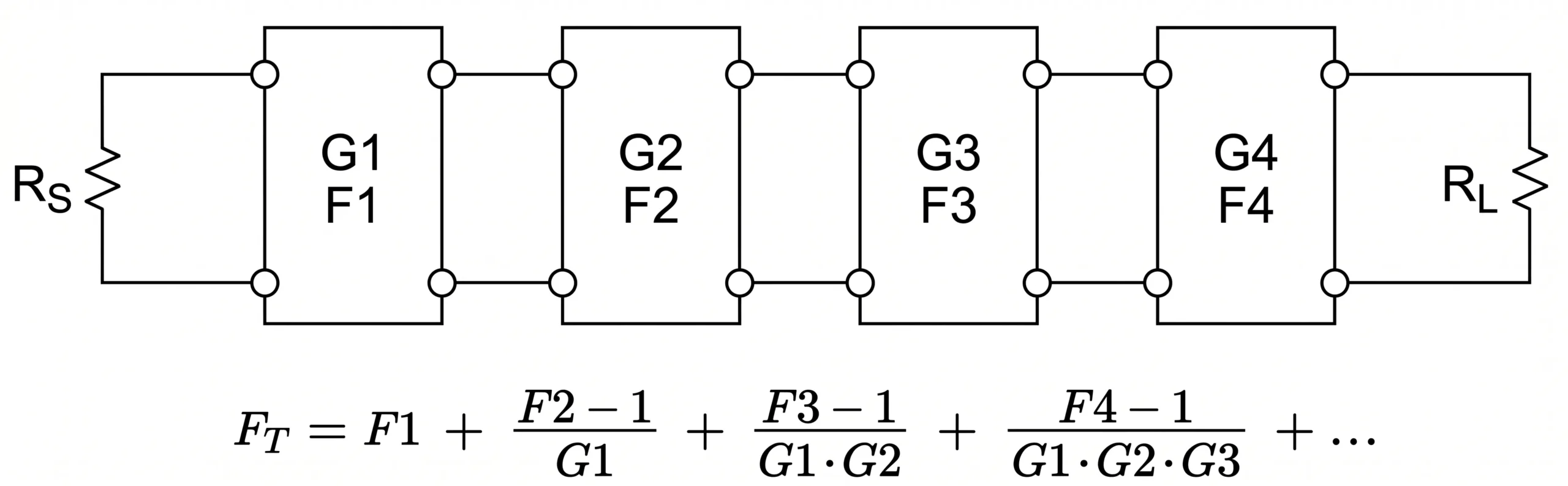

The overall noise performance of a receiver system is almost entirely determined by the noise figure of the very first amplifier in the chain. This is explained by the Friis formula for cascaded noise figure⁵. The noise from later stages gets divided by the gain of the stages before it.

This concept is the most important rule in receiver design. It dictates the architecture of every sensitive radio, radar, and communication system. Let's look at it more closely.
