SSPA

A variety of products and technical details are being refreshed and made available.

The products Safari Microwave Offers you

Safari Microwave excels in creating perfect designs in form, fit, and function.
Pulse SSPA
Pulse SSPA
CW SSPA
CW SSPA

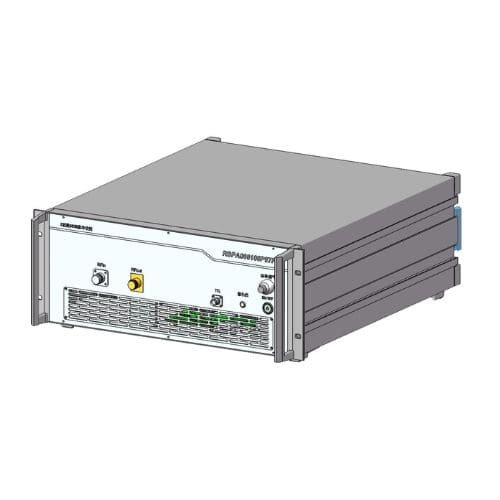

SSPA series solid-state power amplifiers deliver high output power, broad frequency coverage, and excellent gain for continuous wave (CW) and pulsed applications. Featuring high-reliability construction and standard SMA or N-type connectors, these amplifiers ensure optimal performance in radar, communication, and test systems.

Solid-state CW and pulsed power amplifiers are widely used in EMC systems, power tolerance testing, wireless communication jamming, space exploration, and high-energy physics applications.

● Frequency range: 1–37 GHz

● Output power: Up to 1000 W (CW) / 300 W (Pulsed)

● Gain: ≥ 40 dB

● Spurious emissions: ≤ -60 dBc

● Harmonic suppression: ≤ -15 dBc

● Customizable configurations

Pulse Solid-State Power Amplifier (Pulse SSPA) Data Sheet

Part #RF Low
(GHz)		RF High
(GHz)		PSat
(W)		Gain
(dB)		Gain Flatness
(dB) Typ.		VSWR
(:1)		Spurious Emissions
(dBc) Max.		Connector
LSPA-30M500M-A0.030.5≥33≥30≤±1.0≤2-60SMA-Female
LSPA-30M1G-A0.031≥33≥30≤±1.0≤2-60SMA-Female
LSPA-500M3G-A0.53≥33≥30≤±1.5≤2-60SMA-Female
LSPA-1G2G-A12≥33≥30≤±1.0≤2-60SMA-Female
LSPA-2G4G-A24≥33≥30≤±1.0≤2-60SMA-Female
LSPA-2G6G-A26≥33≥30≤±2.0≤2-60SMA-Female
LSPA-4G8G-A48≥33≥30≤±2.0≤2-60SMA-Female
LSPA-2G8G-A28≥33≥30≤±2.5≤2-60SMA-Female
LSPA-6G10G-A610≥33≥30≤±1.5≤2-60SMA-Female
LSPA-8G12G-A812≥33≥35≤±1.5≤2-60SMA-Female
LSPA-12G18G-A1218≥33≥30≤±2.0≤2-60SMA-Female
LSPA-6G18G-A618≥33≥30≤±2.5≤2-60SMA-Female
LSPA-2G18G-A218≥33≥30≤±2.5≤2-60SMA-Female
LSPA-100M18G-A0.118≥31≥30≤±2.0≤2-60SMA-Female
LSPA-18G27G-A1827≥31≥30≤±1.5≤2-602.92mm-Female
LSPA-18G26.5G-A1826.5≥30≥30≤±2.5≤2-602.92mm-Female
LSPA-26G40G-A2640≥31≥30≤±1.5≤2-602.92mm-Female
LSPA-30G33G-A3033≥31≥30≤±1.5≤2-602.92mm-Female
LSPA-32G37G-A3237≥31≥30≤±1.5≤2-602.92mm-Female
LSPA-18G40G-A1840≥30≥30≤±3.0≤2-602.92mm-Female

Continue Wave Solid-State Power Amplifier (CW SSPA) Data Sheet

Part #RF Low
(GHz)		RF High
(GHz)		PSat
(W)		Gain
(dB)		Gain Flatness
(dB) Typ.		VSWR
(:1)		Spurious Emissions
(dBc) Max.		Harmonics (dBc) Max.VoltageConnector
CWSSPA-20-2G6G-A2.06.0≥20≥50≤±1.5≤2-60-20220V AC
CWSSPA-30-2G6G-A2.06.0≥30≥50≤±1.5≤2-60-18220V AC
CWSSPA-100-2G6G-A2.06.0≥100≥50≤±1.5≤2-60-16220V AC
CWSSPA-30-6G18G-A6.018.0≥30≥45≤±2.0≤2-60-18220V AC
CWSSPA-50-6G18G-A6.018.0≥50≥47≤±2.0≤2-60-20220V AC
CWSSPA-100-6G18G-A6.018.0≥100≥50≤±2.5≤2-60-20220V AC
CWSSPA-40-2G18G-A2.018.0≥8≥40≤±4.0≤2-60-12220V AC

Let's talk about your needs

If you can’t find exactly what you are looking for, tell us about your frequency range, power requirements, and specific application areas, and we’ll immediately provide a solution.
request a quote now

What is NB LNA?

An NB LNA, or Narrowband Low Noise Amplifier, is a type of amplifier designed to amplify signals within a specific, narrow frequency range while minimizing noise. These amplifiers are used to enhance weak signals without significantly adding noise, making them ideal for applications where signal clarity is crucial. Key Features of NB LNA: Frequency Specificity: Designed to operate effectively within a narrow frequency band, which helps in achieving better signal-to-noise ratio (SNR) within that range. Low Noise Figure: They introduce minimal additional noise to the amplified signal, making them ideal for applications requiring high sensitivity. High Gain: Provides significant amplification for weak signals within the target frequency range. Common Applications: RF and Microwave Communications: Such as satellite communication, cellular base stations, and radar systems. Wireless Communication Systems: Including Wi-Fi, Bluetooth, and narrowband IoT applications. Testing and Measurement Equipment: Where precise amplification of specific frequencies is necessary.
Narrow Band Low Noise Amplifier by Safari Microwave

Types of RF Amplifiers

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Narrow Band Low Noise Amplifier by Safari Microwave

What Solutions Are There?

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Narrow Band Low Noise Amplifier by Safari Microwave

How Does NB LNA work?

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Narrow Band Low Noise Amplifier by Safari Microwave

Frequently Asked Questions

Can’t find the answer? Reach out to our customer support team.

Our RF & Microwave components cover a wide frequency range, from DC up to 110 GHz, catering to a variety of applications in telecommunications, radar systems, satellite communication, and more.
Yes, we specialize in providing customized solutions. Whether you need specific gain levels, frequency ranges, or unique packaging, our team can tailor our products to meet your exact requirements.
We maintain strict quality control processes, including multiple testing phases, to ensure our components meet the highest industry standards. Our products undergo rigorous testing for parameters such as gain, noise figure, frequency response, and reliability.
Yes, we offer sample units to help you evaluate our products before placing a larger order. Please contact our sales team to discuss your sample requirements.

Yes, our products come with a standard 2-year warranty. We stand by the quality and reliability of our components, and our technical support team is always available to assist with any issues.
