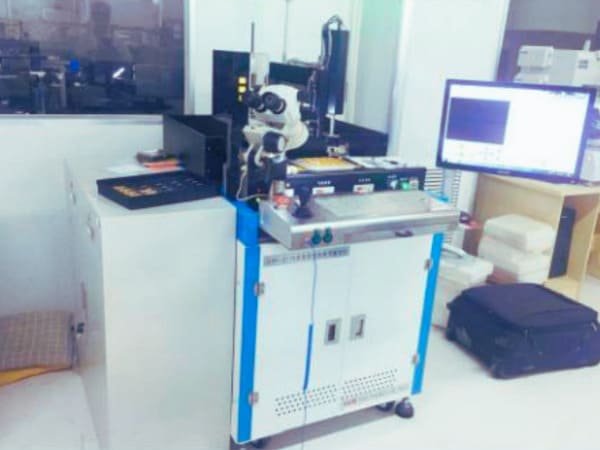

Probe Station
Laser PCB Making Machine
Vacuum Soldering System

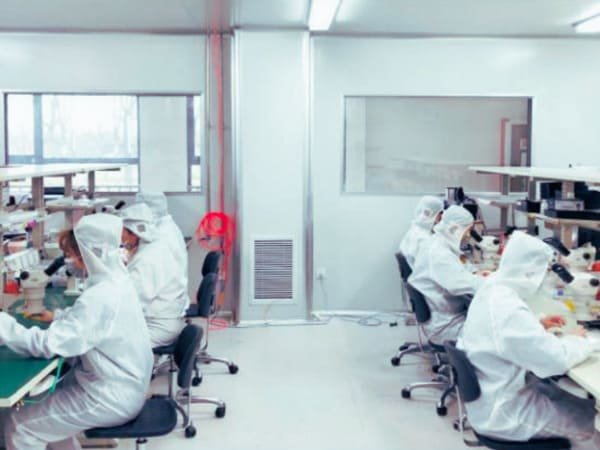

Micro Assembly Line by Safari Microwave
Micro Assembly Line by Safari Microwave
Micro Assembly Line by Safari Microwave

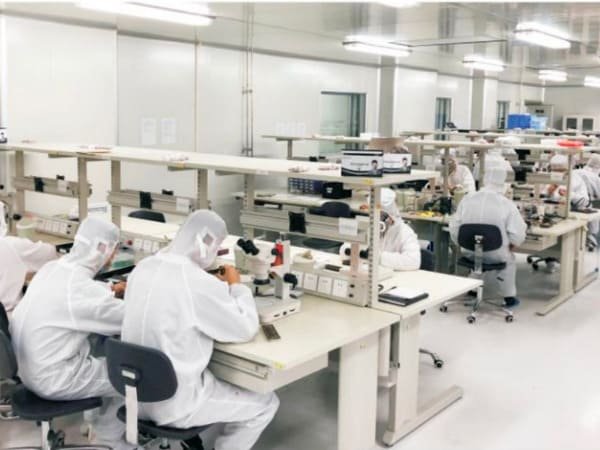

Electrical Assembly Line
Electrical Assembly Line
Electrical Assembly Line
Testing & Commissioning by Safari Microwave
Testing & Commissioning by Safari Microwave
Testing & Commissioning by Safari Microwave
Environmental Inspection by Safari Microwave
Environmental Inspection by Safari Microwave
Environmental Inspection by Safari Microwave
High-performance RF and microwave components amplifier by Safari Microwave
What Are the Key Design Challenges and Solutions for High-Power Power Dividers?
Chapter 1
High-performance RF and microwave components RF Switches by Safari Microwave
How to Ensure Consistent Performance of RF Power Dividers Over a Wide Frequency Range?
Chapter 2
High-performance RF and microwave components Attenuators by Safari Microwave
How to Manage Heat Dissipation in High-Power Power Dividers Under Extreme Conditions?
Chapter 3
High-performance RF and microwave components Power Divider by Safari Microwave
How to Balance Power Handling and Frequency Range for Broadband Applications?
Chapter 4
High-performance RF and microwave components RF Switches by Safari Microwave
How to Ensure Uniform Power Distribution in Multi-Output High-Power Power Dividers?
Chapter 5
High-performance RF and microwave components Filters by Safari Microwave
What Are the Typical Applications of RF and High-Power Power Dividers in Industries Such as 5G, Radar, and Satellite Communications?
Chapter 6

All You Need To Know About Passive Components

Chapter 1

What Are the Key Design Challenges and Solutions for High-Power Power Dividers?

placeholder_image

High-power power dividers play a crucial role in RF systems, ensuring equal signal distribution. However, engineers face challenges like power handling, heat dissipation, and insertion loss. Without proper design, performance issues or even failure can occur.

Key design challenges include power handling, thermal management, insertion loss, EMC, material selection, and size constraints. Optimizing the power distribution structure, using high-thermal-conductivity materials, and minimizing parasitic effects improve reliability.

Understanding these challenges and their solutions is essential for designing stable, efficient power dividers. Let’s explore them in detail.

Power Handling and Thermal Management Optimization

How to Improve Power Handling?

High-power signals can cause breakdowns or nonlinear distortion, compromising signal integrity.

Power handling can be improved by selecting high-power-rated components, using optimized transmission line structures, and performing field simulations to ensure uniform electric field distribution.

Power Handling Optimization

Key Factors in Power Handling

  1. Dielectric Breakdown: High voltages can exceed the material’s breakdown voltage, leading to failure.
  2. Thermal Runaway: Increased power leads to excess heat, accelerating component degradation.
  3. Impedance Mismatch: Poor impedance matching causes signal reflection, reducing efficiency.
Challenge Solution
Dielectric breakdown Use high-breakdown-voltage materials like ceramics
Thermal runaway Improve heat dissipation with thermal vias and metal-backed substrates
Impedance mismatch Optimize impedance matching networks

By addressing these factors, engineers can ensure stable power divider performance under high-power conditions.

How to Optimize Thermal Management?

High-power operation generates significant heat, potentially leading to performance degradation or failure.

Effective thermal management includes using high-conductivity materials, enhancing heat dissipation structures, and employing temperature compensation techniques.

Thermal Management Optimization

Key Thermal Challenges and Solutions

  • Heat Generation: More power means higher temperatures.
  • Thermal Stress: Uneven heating can cause material expansion and mechanical failure.
  • Long-Term Stability: Prolonged high temperatures accelerate material aging.
Issue Solution
Excessive heat Use high-thermal-conductivity materials like copper
Uneven temperature distribution Implement heat sinks and active cooling
Thermal drift Use temperature-stable dielectric materials

By improving thermal design, power dividers maintain consistent performance over extended operation periods.

Power Divider Optimization: Insertion Loss, EMC, and Material Selection

How to Reduce Insertion Loss and Improve Efficiency?

High insertion loss reduces overall system efficiency, affecting signal strength.

Minimizing insertion loss involves using low-loss dielectric materials, optimizing conductor surface treatment, and refining impedance matching.

Insertion Loss Optimization

Major Factors Affecting Insertion Loss

  1. Dielectric Loss: Caused by the material's dissipation factor.
  2. Conductor Loss: Due to resistive heating in metal traces.
  3. Mismatched Transmission Lines: Lead to signal reflection and power loss.
Loss Type Solution
Dielectric loss Use low-loss materials like PTFE or ceramic
Conductor loss Apply silver or gold plating to reduce resistance
Reflection loss Design precise impedance matching networks

By focusing on material selection and design refinements, insertion loss can be minimized, improving power divider efficiency.

How to Ensure EMC Compliance?

High-power systems generate strong electromagnetic interference (EMI), affecting nearby circuits.

Mitigating EMC issues involves shielding, optimizing transmission line structures, and implementing filtering techniques.

EMC Compliance

EMC Challenges and Mitigation Strategies

  • Radiated Emissions: High-frequency signals create unintended radiation.
  • Conducted Noise: Power dividers can introduce unwanted harmonics.
  • Crosstalk: Signal leakage between adjacent traces.
EMC Issue Solution
Radiated emissions Use metal enclosures and shielding
Conducted noise Add filtering networks (LC filters)
Crosstalk Maintain proper spacing and grounding techniques

Addressing EMC ensures compliance with regulatory standards and prevents system interference.

How to Choose the Right Materials?

Material selection impacts power handling, thermal stability, and long-term reliability.

Key considerations include low-loss dielectric materials, high-conductivity metals, and environmental resistance.

Material Selection

Best Materials for High-Power Power Dividers

  • Substrates: PTFE, Rogers, or ceramic for low-loss performance.
  • Conductors: Gold, silver, or copper plating for low resistance.
  • Encapsulation: Protective coatings for durability in harsh environments.
Component Recommended Material
Substrate PTFE, Alumina, Rogers
Conductor Silver, Gold, Copper
Protective Layer Conformal coating, Epoxy

Choosing the right materials enhances power divider longevity and performance.

How to Balance Size and Mechanical Stability?

High-power applications often require compact designs, but reducing size can impact performance.

Balancing size and stability involves using optimized transmission line structures, ensuring mechanical rigidity, and validating designs through simulation.

Size and Mechanical Stability
Power Divider Design Optimization

Strategies for Size Optimization

  • Microstrip or Coplanar Waveguide Designs: Reduce footprint while maintaining performance.
  • Reinforced Mechanical Support: Prevents structural deformation over time.
  • Simulation-Driven Design: Ensures compact designs meet performance goals.
Size Constraint Solution
Limited PCB area Use multi-layer PCBs or compact waveguides
Structural instability Employ rigid materials and mounting techniques
Performance trade-offs Optimize layout using full-wave simulation

By carefully balancing size and mechanical strength, high-power power dividers achieve both reliability and compactness.

Conclusion

Designing high-power power dividers presents challenges in power handling, thermal management, efficiency, EMC, materials, and size constraints. By selecting appropriate materials, optimizing heat dissipation, reducing insertion loss, and implementing EMC shielding, engineers can enhance performance and reliability. Addressing these factors ensures power dividers operate efficiently in demanding applications.

Chapter 2

How to Ensure Consistent Performance of RF Power Dividers Over a Wide Frequency Range?

How to Ensure Consistent Performance of RF Power Dividers
RF Power Divider

RF power dividers are essential components in wireless communication, radar systems, and RF testing equipment. However, maintaining stable performance over a wide frequency range is a significant technical challenge. If amplitude, phase, or isolation varies too much across different frequencies, system performance can degrade, leading to signal integrity issues. So, how can we ensure RF power dividers maintain consistent performance across a broad frequency spectrum?

RF power divider performance can be stabilized through optimized circuit design, high-quality materials, precise manufacturing, impedance matching, and rigorous testing.

Understanding these factors will help improve the overall efficiency and reliability of RF systems. Let's dive deeper into each aspect.

How Does an RF Power Divider Work?

RF power dividers split an input signal into multiple output ports while maintaining a specific phase relationship. Their primary performance metrics include insertion loss, isolation, and return loss. Depending on the application, different power divider designs, such as Wilkinson dividers or resistive dividers, may be used.

Key Characteristics of RF Power Dividers

Parameter Description
Insertion Loss The power lost when dividing the signal.
Isolation The separation between output ports to prevent signal interference.
Return Loss A measure of impedance matching quality.
Phase Balance The consistency of phase shift across output ports.
Amplitude Balance Ensuring equal power distribution among output ports.

Maintaining these parameters within acceptable limits across a wide frequency range is the key to stable performance.

How Can Design Optimization Improve Wideband Performance?

Wideband Design Optimization

Traditional power dividers work well within a narrow frequency range, but for wideband applications, special design techniques are required.

Techniques for Wideband Design

  • Multilayer Coupled Structures – Using multi-layer substrates can extend bandwidth and improve isolation.
  • Wideband Baluns – These help in achieving consistent phase and amplitude across the frequency spectrum.
  • Optimized Transmission Lines – Adjusting microstrip or stripline layouts minimizes parasitic effects.
  • Advanced Matching Networks – Broadband matching circuits reduce variations in impedance over frequency.

Using these techniques, designers can develop power dividers that maintain consistent performance from MHz to GHz frequencies.

How Does Material Selection Affect Frequency Stability?

Material Selection

Material properties play a crucial role in determining the performance of RF power dividers. Different PCB substrates and conductor materials impact loss, impedance stability, and temperature behavior.

Choosing the Right Material

Material Type Key Properties
Low-Loss Dielectrics Reduces insertion loss at high frequencies.
Stable Dielectric Constant Ensures consistent impedance over temperature changes.
High Conductivity Metals Minimizes resistive losses and improves efficiency.
Thermal Expansion Stability Prevents frequency drift due to temperature variations.

For high-frequency applications, materials like Rogers RO4000 or Taconic RF substrates are preferred over standard FR4 due to their superior electrical properties.

Why Is Manufacturing Precision Critical?

Manufacturing Precision

Even with the best design and materials, poor manufacturing quality can introduce performance inconsistencies.

Manufacturing Factors Affecting Performance

  • Etching Accuracy – Small variations in PCB etching can affect impedance and phase balance.
  • Soldering Consistency – Uneven soldering can cause mismatches and affect signal integrity.
  • Component Placement Precision – Variations in mounting can impact electrical characteristics.
  • Connector Quality – Low-quality RF connectors can introduce losses and reflections.

By enforcing strict manufacturing tolerances, power dividers can achieve consistent performance across all produced units.

How to Optimize Impedance Matching and VSWR?

Impedance mismatches lead to unwanted signal reflections, increasing Voltage Standing Wave Ratio (VSWR) and reducing efficiency.

Techniques for Better Impedance Matching

  • Precision Matching Components – Use accurate resistors and capacitors to fine-tune impedance.
  • Quarter-Wavelength Transformers – These help match different impedance levels over a wide range.
  • Tapered Transmission Lines – Gradually varying impedance helps minimize reflections.
  • Active Compensation Circuits – Some designs use active elements to dynamically adjust matching.

A well-matched power divider with low VSWR ensures maximum power transfer and stable performance across frequencies.

How to Perform Wideband Testing and Calibration?

Testing and Calibration

Testing is essential to verify that RF power dividers meet their design specifications across the entire operating frequency range.

Recommended Testing Procedures

Test Type Purpose

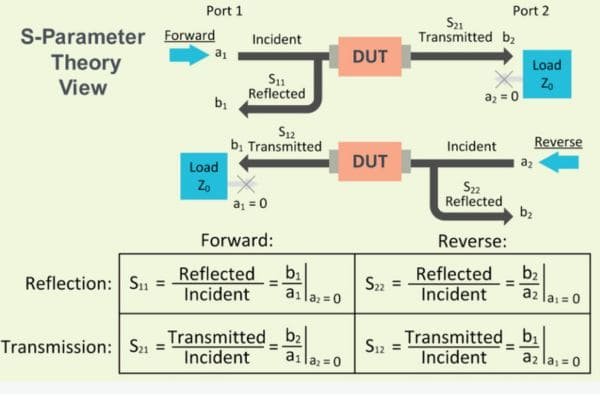

S-Parameter Measurement Verifies insertion loss, return loss, and isolation.
Time-Domain Reflectometry (TDR) Detects impedance mismatches.
Network Analyzer Calibration Ensures accurate frequency response measurements.
Environmental Testing Simulates temperature and humidity effects on performance.

Using a Vector Network Analyzer (VNA), engineers can confirm that the power divider performs as expected across all operating conditions.

Conclusion

Ensuring consistent performance of RF power dividers across a wide frequency range requires careful attention to design, materials, manufacturing, impedance matching, and testing. By optimizing these factors, engineers can achieve reliable, high-performance RF systems for modern wireless communication, radar, and test applications.

Chapter 3

How to Manage Heat Dissipation in High-Power Power Dividers Under Extreme Conditions?

Effective Heat Dissipation in High-Power RF and Microwave Applications

Poor heat dissipation in high-power RF and microwave applications can lead to efficiency loss, reliability issues, and even device failure. Extreme environments, such as high temperatures, high humidity, or high power density, make cooling even more challenging. If not managed properly, excessive heat can cause power loss, detuning, or permanent damage to the components. So, how can we effectively manage heat dissipation in high-power power dividers1?

Effective cooling strategies include using high-conductivity materials, optimizing thermal designs, improving power conversion efficiency, enhancing air convection, and integrating intelligent thermal management systems2.

Let’s dive deeper into each strategy and understand its advantages and best applications.

What Are the Best Materials for Heat Dissipation?

placeholder_image

Choosing the right materials is the first step in managing heat effectively. Different materials have different thermal conductivity, which directly affects cooling efficiency.

Common Materials Used for Heat Dissipation

Material Thermal Conductivity (W/m·K) Advantages Disadvantages
Copper 385 Excellent thermal conductivity Heavy, expensive
Aluminum 205 Lightweight, good conductivity Lower performance than copper
AlN Ceramic 170 High conductivity, electrical insulation Brittle, costly
Graphene 1000+ Exceptional conductivity, lightweight Expensive, difficult to apply

Why Material Selection Matters

Using high-conductivity materials reduces the temperature rise in power dividers. For high-power applications, copper is often the best choice because of its superior thermal performance. However, aluminum is used when weight reduction is important. Advanced materials like AlN ceramic and graphene provide unique advantages but come at a higher cost.

How to Optimize Thermal Design for Better Heat Dissipation?

placeholder_image

A well-designed cooling structure can significantly enhance thermal performance. Passive and active cooling methods are both widely used.

Key Thermal Design Techniques

  1. Heat Sink Integration3
    • Increases surface area for heat dissipation
    • Commonly made of aluminum or copper
    • Works well with forced-air cooling
  2. Heat Pipe Technology
    • Transfers heat efficiently using phase change principles
    • Ideal for high-power density applications
    • Used in aerospace and telecommunications
  3. Liquid Cooling Systems4
    • Uses liquid coolant to remove heat
    • Effective for extreme heat conditions
    • Requires additional maintenance

Comparing Cooling Methods

Cooling Method Heat Dissipation Efficiency Complexity Cost Best Use Cases
Passive Heat Sink Medium Low Low General RF applications
Heat Pipes High Medium Medium High-power RF/microwave
Liquid Cooling Very High High High Extreme power densities

For most RF applications, a well-designed heat sink is enough. However, in extreme cases, advanced methods like heat pipes or liquid cooling may be required.

How to Improve Power Conversion Efficiency to Reduce Heat?

placeholder_image

Reducing power loss is one of the most effective ways to minimize heat generation. Inefficient power conversion leads to excess heat, reducing overall performance.

Key Strategies for Higher Efficiency

1. Optimize PCB Design

  • Minimize resistance in copper traces
  • Use wider traces for high-current paths
  • Implement thermal vias for better heat dissipation

2. Use Low-Loss Dielectric Materials

  • PTFE-based materials reduce dielectric losses
  • Improves high-frequency performance
  • Reduces unnecessary heat buildup

3. Implement High-Efficiency Matching Circuits

  • Proper impedance matching minimizes power reflection
  • Reduces energy loss as heat
  • Enhances system reliability

Efficiency Improvement Table

Efficiency Improvement Impact on Heat Generation Application
Optimized PCB Design Medium Reduction General RF Circuits
Low-Loss Dielectrics High Reduction High-Frequency Circuits
Matching Networks Significant Reduction Power Amplifiers

By improving efficiency, we not only enhance performance but also reduce the need for complex cooling mechanisms.

How to Enhance Air Convection Cooling?

placeholder_image

Air cooling is a fundamental method for thermal management. Both natural and forced convection play a role in keeping power dividers cool.

Techniques to Enhance Air Cooling

  1. Forced-Air Cooling
    • Uses fans or blowers to improve airflow
    • Suitable for high-power RF systems
    • Must consider noise and power consumption
  2. Optimized Airflow Paths
    • Ensures even cooling across components
    • Reduces hotspots inside enclosures
    • Improves reliability and lifespan
  3. Vented Enclosures
    • Allows better passive cooling
    • Prevents dust accumulation with proper filtering
    • Works best in controlled environments

When to Use Air Cooling

Cooling Type Efficiency Best Application
Natural Convection Low Low-power RF Systems
Forced-Air Cooling Medium-High High-Power RF Systems
Vented Enclosures Medium Enclosed Systems

Forced-air cooling is often necessary for high-power power dividers, especially in confined spaces.

How Can Intelligent Thermal Management Improve Performance?

placeholder_image

Advanced cooling techniques now integrate smart thermal management systems. These systems dynamically control cooling based on real-time conditions.

Key Features of Intelligent Cooling

  1. Temperature Sensors
    • Monitor real-time temperatures
    • Prevent overheating issues
  2. Automated Fan Control5
    • Adjusts fan speed based on temperature
    • Reduces noise and power consumption
  3. Thermal Shutdown Protection6
    • Automatically reduces power output at critical temperatures
    • Prevents damage to sensitive RF components

Benefits of Smart Cooling

Feature Benefit
Sensor Monitoring Real-time heat management
Dynamic Fan Control Energy-efficient operation
Overheat Protection Prevents hardware damage

By integrating smart cooling, we can significantly improve the longevity and efficiency of power dividers.

Conclusion

Managing heat dissipation in high-power power dividers is essential for reliability and performance. By choosing the right materials, optimizing thermal design, improving efficiency, enhancing air cooling, and integrating smart thermal management, we can effectively control temperature even in extreme environments. Proper cooling ensures stable operation, reduces power loss, and extends the lifespan of critical RF components.

Footnotes:

  1. Learn about the specific challenges and solutions for high-power power dividers to ensure reliability in demanding environments.
  2. Stay updated on cutting-edge thermal management technologies that can enhance performance and efficiency in high-power applications.
  3. Exploring heat sink integration techniques can enhance your designs for better heat dissipation and efficiency.
  4. Liquid cooling systems offer superior heat management for extreme conditions, making them essential for high-performance applications.
  5. Discover the benefits of Automated Fan Control in reducing noise and energy consumption while maintaining optimal temperatures.
  6. Learn about Thermal Shutdown Protection and its critical role in preventing damage to sensitive components during overheating situations.

Chapte 4

How to Balance Power Handling and Frequency Range for Broadband Applications?

Power handling and frequency range1 often compete in RF and microwave design. Higher power can limit frequency extension, while broadband designs may reduce power capacity.

Optimizing circuit design, using advanced materials, improving thermal management, and adopting high-linearity amplifiers help balance power handling2 and frequency range.

Let’s explore the best methods to achieve this balance.

Why Are Power Handling and Frequency Range Hard to Balance?

Power handling depends on materials, circuit design, and thermal capacity. Frequency range is limited by parasitic effects and matching networks. Larger components for high power may restrict high-frequency performance.

placeholder_image

Key Factors Affecting Power Handling and Frequency Range

Factor Impact on Power Handling Impact on Frequency Range
Material Determines power density and thermal conductivity Defines frequency response and loss levels
Circuit Design Affects impedance matching and loss Influences bandwidth and signal integrity
Thermal Management Dictates reliability at high power levels Prevents frequency drift due to heat

How to Improve Power Handling While Maintaining Frequency Range?

1. Choosing the Right Material

a. GaN (Gallium Nitride)3

  • High power density and efficiency.
  • Supports broadband applications with minimal loss.
  • Requires advanced thermal management due to high power dissipation.

b. GaAs (Gallium Arsenide)

  • Suitable for high-frequency applications.
  • Offers moderate power handling, lower than GaN.
  • Ideal for moderate power broadband designs.

c. LDMOS (Laterally Diffused Metal-Oxide Semiconductor)

  • Works well in low-to-mid frequency ranges.
  • Cost-effective for large-scale applications.
  • Limited at high frequencies due to transit time effects.

2. Optimizing Circuit Design

a. Broadband Matching Networks4

  • Use multi-stage impedance matching for wider bandwidth.
  • Implement low-loss substrates (ceramic, high-frequency PCB) to reduce signal degradation.

b. Distributed Power Amplifier Architecture

  • Utilize Doherty or balanced amplifier designs.
  • Improves power efficiency across broadband signals.

Comparing Circuit Design Approaches

Circuit Design Approach Benefit for Power Handling Benefit for Frequency Range
Doherty Amplifier5 Efficient at high power levels Enhances bandwidth efficiency
Balanced Amplifier Improves linearity Reduces signal degradation
Distributed Amplifier Shares power across transistors Supports ultra-wideband designs

Managing Thermal Performance for Stable Power and Frequency

placeholder_image

Thermal effects impact both power stability and frequency performance. Higher temperatures shift operating points, reducing efficiency and bandwidth.

1. Selecting High-Thermal Conductivity Materials6

  • Use metal-backed substrates (Cu, AlN) to dissipate heat.
  • Incorporate diamond-based heat spreaders for extreme applications.

2. Advanced Cooling Techniques

  • Passive Cooling: Heat sinks, thermal vias, and spreaders.
  • Active Cooling: Liquid cooling and heat pipes.
  • Thermal Simulation: Predicts heat flow and prevents hotspots.

Comparing Cooling Methods

Cooling Method Power Handling Impact Frequency Stability Benefit
Heat Sinks Enhances power dissipation Reduces frequency drift
Liquid Cooling Handles extreme power levels Prevents signal degradation
Thermal Simulation Optimizes heat flow design Improves long-term reliability

Enhancing Linearity for High-Power Broadband Systems

Linearity ensures signal integrity across broadband applications. High power amplifiers introduce distortion, which affects performance.

1. Using Linearization Techniques

2. Selecting Low IMD (Intermodulation Distortion8) Devices

  • Low IMD devices reduce spectral regrowth in broadband applications.
  • Ensures compliance with spectral mask requirements in RF systems.

Comparing Linearization Techniques

Linearization Technique Effect on Power Handling Effect on Frequency Range
Digital Predistortion Improves efficiency at high power Supports wideband correction
Feedforward Compensation Reduces unwanted harmonics Stabilizes frequency response

Application-Specific Strategies

1. Power Amplifiers for 5G Networks

  • Uses GaN HEMTs9 for high power and broadband support.
  • Implements Doherty architecture for efficiency.

2. Radar Systems

  • Requires high peak power and broadband operation.
  • Uses wideband GaN power amplifiers with distributed architectures.

3. Satellite Communication

Conclusion

Balancing power handling and frequency range requires a combination of advanced materials, optimized circuit design, effective thermal management, and linearization techniques. By using GaN-based designs, broadband matching networks, and efficient cooling systems, we can achieve reliable high-power broadband performance.

References

  1. Optimizing frequency range is essential for effective microwave circuit performance. Discover advanced techniques and strategies in this resource.
  2. Understanding power handling is crucial for optimizing RF designs, ensuring reliability and performance. Explore this link for expert insights.
  3. Explore the advantages of GaN, including its high power density and efficiency, crucial for modern applications.
  4. Learn how broadband matching networks enhance bandwidth and reduce signal degradation, vital for effective circuit design.
  5. Discover how Doherty amplifiers enhance power handling and bandwidth efficiency, making them essential in modern amplifiers.
  6. Explore this link to discover materials that enhance thermal management in electronic devices, ensuring better performance and reliability.
  7. Learn how DPD technology can significantly enhance signal quality and efficiency in high-power applications, making it essential for modern RF systems.
  8. Understanding IMD is crucial for optimizing RF system performance; this resource will provide insights into its impact and mitigation strategies.
  9. Explore this link to understand how GaN HEMTs enhance power amplifier performance in 5G networks.
  10. Discover the significance of high-linearity amplifiers in minimizing signal distortion for satellite communications.

Chapte 5

How to Ensure Uniform Power Distribution in Multi-Output High-Power Power Dividers?

Ensuring Uniform Power Distribution in High-Power RF Power Dividers

Power imbalance in high-power RF power dividers can degrade system performance and even damage components. How can we ensure uniform power distribution1?

Ensuring uniform power distribution requires precise design, high-quality materials, and thorough testing. Factors such as impedance mismatch, manufacturing tolerances2, and temperature variations must be controlled to maintain system stability.

To achieve this, we must optimize circuit design, use advanced materials, implement rigorous manufacturing standards, and conduct thorough testing. Let’s explore the key aspects of achieving uniform power distribution.

What are the key factors affecting power distribution uniformity?

Power imbalance in a multi-output high-power power divider can arise from several factors:

  • Impedance mismatch – Poor matching at input or output ports leads to reflections and power loss.
  • Manufacturing tolerances – Variations in circuit components may cause deviations in power distribution.
  • Transmission line loss – Unequal loss in different branches affects power uniformity.
  • Frequency range – Wideband power dividers may have uneven distribution at higher frequencies.
  • Temperature variations3 – Heating effects can change circuit characteristics, impacting power balance.
placeholder_image

Transmission Loss and Frequency Response

Factor Impact on Power Distribution Solution
Impedance mismatch Causes power reflection & loss Use precision matching networks
Manufacturing tolerances Leads to unbalanced power split Improve fabrication accuracy
Frequency dependence Uneven distribution at high frequencies Optimize broadband design
Temperature variations Affects electrical properties Implement thermal management

Understanding these factors allows us to develop effective design strategies to ensure power uniformity.

How to optimize the design for uniform power distribution?

Using precise engineering techniques can help achieve even power distribution:

  • Precision-matched microwave circuits4 – Optimized microstrip or waveguide structures reduce loss and reflections.
  • High-quality materials – Low-loss dielectric materials improve signal consistency.
  • Phase consistency design – Ensuring phase alignment across all output ports minimizes phase distortion.
  • Uniform power distribution networks5 – Wilkinson dividers and other low-loss structures enhance uniformity.
  • Thermal management optimization – High thermal conductivity materials and heat dissipation techniques minimize thermal variations.
placeholder_image

Key Design Parameters

Parameter Recommended Value
Return loss (dB) >20 dB
Insertion loss (dB) <1 dB
Phase imbalance (degrees) <2°
Amplitude imbalance (dB) <0.5 dB
Operating temperature range (°C) -40 to +85

How to test and calibrate for consistent power distribution?

Testing and calibration are essential to verify uniform power distribution:

  • Vector Network Analyzer (VNA) Testing – Measure S-parameters to confirm even power split.
  • Power Meter Calibration – Ensure accurate power levels across all output ports.
  • Load Matching Tests – Check return loss to optimize impedance matching.
  • Temperature Cycling Tests – Simulate high-temperature conditions to evaluate thermal effects.
placeholder_image

Key Test Parameters for Power Dividers

Test Method Purpose Equipment Used
VNA S-parameter test Verify power balance & impedance Vector Network Analyzer
Power meter calibration Ensure uniform output power Precision power meter
Thermal stress test Evaluate performance under heat Temperature chamber

Thorough testing ensures that the power divider meets performance requirements across different conditions.

How to choose the right supplier for high-power power dividers?

A reliable supplier is essential for high-performance power dividers:

  • Strict quality control – 100% testing ensures stable and reliable performance.
  • Customization capabilities – Tailored solutions for specific application needs.
  • Reliable delivery – On-time supply prevents project delays.
  • Technical support – Expert assistance for system integration and troubleshooting.

Choosing a supplier with a strong track record in RF power dividers ensures long-term performance and reliability.

Conclusion

Ensuring uniform power distribution in high-power power dividers requires careful design, high-quality materials, rigorous testing, and reliable suppliers. By addressing impedance matching, thermal effects, and frequency response, we can optimize performance and enhance system stability.

  1. Understanding best practices can help you design more efficient RF systems and avoid performance issues.
  2. Exploring this topic can enhance your knowledge of quality control in RF component production.
  3. Discover how temperature variations influence power distribution and strategies for effective thermal management.
  4. Explore this link to understand how precision-matched microwave circuits can enhance power distribution efficiency.
  5. Discover the importance of uniform power distribution networks in achieving optimal performance in microwave circuits.

Chapte 6

What Are the Typical Applications of RF and High-Power Power Dividers in Industries Such as 5G, Radar, and Satellite Communications?

RF and high-power power dividers play a crucial role in modern wireless communications and defense systems. However, choosing the right power divider can be challenging. Engineers and procurement teams need to ensure signal stability1, meet stringent high-frequency and high-power requirements, and balance performance with cost.

RF and high-power power dividers are essential for signal distribution, combining, and isolation in applications such as 5G MIMO antennas2, radar signal processing, and satellite communications.

Selecting the right power divider requires an understanding of its role in different industries. Let's explore their key applications and technical considerations.

How Are RF Power Dividers Used in 5G Networks?

RF power dividers are critical components in 5G base stations and network infrastructure, ensuring reliable signal distribution across multiple antenna elements.

placeholder_image

MIMO and Massive MIMO Systems

  • Distribute RF signals evenly across multiple antenna elements, enhancing signal coverage and data throughput.
  • Maintain phase and amplitude consistency to optimize beamforming performance.

Small Cell and Distributed Antenna Systems (DAS)3

  • Enable indoor and outdoor 5G network coverage by distributing signals across multiple antenna nodes.
  • Improve network density and signal quality in high-density urban areas, stadiums, and commercial buildings.

5G Testing and Measurement

  • Used in R&D and production testing to split signals for multi-channel analysis, ensuring accurate network performance evaluation.
Application Frequency Range Isolation Requirement Power Handling
Massive MIMO Systems 3.5GHz-6GHz High Medium
Small Cells & DAS 600MHz-6GHz Moderate Low
5G Test & Measurement DC-40GHz High Variable

How Are RF Power Dividers Used in Radar Systems?

Radar systems rely on high-power RF dividers for efficient signal distribution, phase alignment, and interference minimization.

placeholder_image

Phased Array Radar

  • Distribute signals across antenna elements to enable precise beam steering and directional control.
  • Require high power handling, low insertion loss, and excellent isolation.

Military Electronic Warfare (EW)

  • Used in EW systems for multi-path signal distribution, supporting jamming, reconnaissance, and signal interception.

Aviation and Maritime Radar

  • Essential for navigation, target tracking, and detection.
  • Require high reliability and stability in extreme environments.
Application Frequency Range Isolation Requirement Power Handling
Phased Array Radar 1GHz-40GHz High High
Electronic Warfare 500MHz-40GHz Very High Medium-High
Aviation/Maritime Radar 1GHz-20GHz Moderate High

How Are RF Power Dividers Used in Satellite Communications?

Satellite communication systems depend on RF dividers to ensure stable and reliable signal transmission between ground stations, satellites, and payload systems.

placeholder_image

Satellite Ground Stations

  • Distribute uplink/downlink RF signals across multiple antennas or receivers.
  • Improve communication link stability and reliability.

Satellite Payload Systems

  • Route received signals to different subsystems, supporting multi-beam communication and data transmission.

Satellite Testing and Measurement

  • Used for RF signal testing to verify antenna array and signal processing system performance.
Application Frequency Range Isolation Requirement Power Handling
Ground Stations 1GHz-30GHz High High
Satellite Payloads 2GHz-40GHz Moderate Medium
Satellite Testing DC-40GHz Very High Variable

What Are the Key Factors When Selecting RF and High-Power Power Dividers?

Choosing the right power divider depends on several technical considerations. A well-selected power divider ensures minimal signal degradation, optimal power distribution, and long-term reliability in high-performance RF systems.

placeholder_image

Frequency Range

  • The power divider must operate within the intended frequency range to ensure effective signal distribution.
  • Common frequency bands include DC-6GHz for general applications, 8-18GHz for radar and satellite, and up to 40GHz for high-frequency military and aerospace systems.

Insertion Loss4

  • Lower insertion loss results in better signal transmission efficiency and minimal power dissipation.
  • High-quality materials and precise manufacturing can help reduce insertion loss, ensuring consistent system performance.

Isolation

  • High isolation prevents interference between output ports, improving signal integrity.
  • Applications like phased-array radar and satellite communications require exceptional isolation to avoid unwanted signal coupling.

Power Handling

  • A power divider should withstand the maximum input power without performance degradation.
  • Factors such as thermal dissipation, material composition, and design topology affect power handling capability.
  • High-power applications often use Wilkinson dividers for better efficiency and heat management.

Port Matching (VSWR)

  • A lower Voltage Standing Wave Ratio (VSWR) ensures proper impedance matching and minimizes signal reflections.
  • Poor impedance matching can lead to signal degradation, reducing overall system efficiency.

Packaging and Connector Types

  • The choice of packaging and connectors depends on environmental conditions, power levels, and mechanical constraints.
  • SMA connectors are commonly used for low-to-medium power applications, while N-type and 2.92mm connectors are preferred for higher frequencies and power levels.
  • Ruggedized packaging is essential for military, aerospace, and outdoor telecom applications where mechanical stability and temperature variations are concerns.

Environmental Stability5

  • RF power dividers should maintain consistent performance under temperature fluctuations, humidity, and vibration.
  • Materials with low thermal expansion coefficients and hermetic sealing can enhance stability in harsh environments.
Selection Criteria Recommendation
High-Power Handling Wilkinson Divider
Broadband Coverage Resistive Divider
Low Loss & High Isolation Hybrid Divider
Compact Size Microstrip Divider
Harsh Environment Ruggedized Connector & Sealed Housing
High-Frequency Stability Precision Machined Components

A well-chosen power divider significantly enhances RF system efficiency, ensuring stable and reliable signal distribution for applications such as 5G, radar, and satellite communications.

Conclusion

RF and high-power power dividers are essential for modern communication, radar, and satellite applications. Choosing the right power divider depends on factors like frequency range, power handling, isolation, and insertion loss. Engineers must carefully evaluate these criteria to ensure optimal system performance and reliability.

  1. Exploring signal stability can help you grasp its importance in ensuring reliable communication in various applications.
  2. Learning about 5G MIMO antennas will enhance your knowledge of modern wireless technology and its impact on connectivity.
  3. Discover how Small Cells and DAS enhance 5G coverage in urban areas and buildings.
  4. Understanding Insertion Loss is crucial for optimizing signal transmission efficiency in RF systems. Explore this link for detailed insights.
  5. Explore how Environmental Stability impacts performance in harsh conditions, ensuring reliability in critical applications like military and aerospace.

Free Budget Assessment

Upon submitting an inquiry, a senior engineer with 30 years of expertise will provide you with a complimentary price assessment.

Excellence In Every Hertz！

Linkedin Youtube Facebook

Company

Support

Connect

Ask For A Quick Quote

We will contact you within 1 working day, please pay attention to the email with the suffix “@safarimw.com”.
