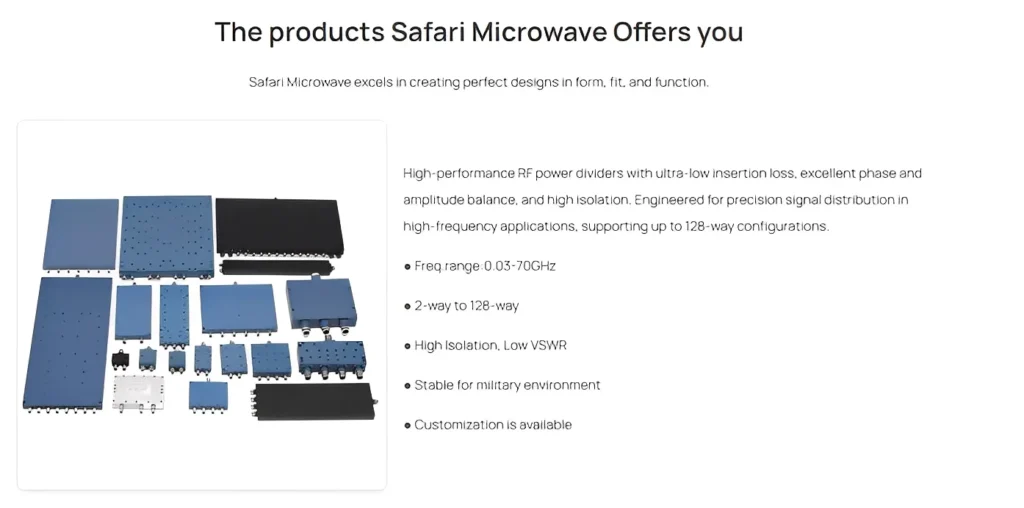

The products Safari Microwave Offers you

Safari Microwave excels in creating perfect designs in form, fit, and function.

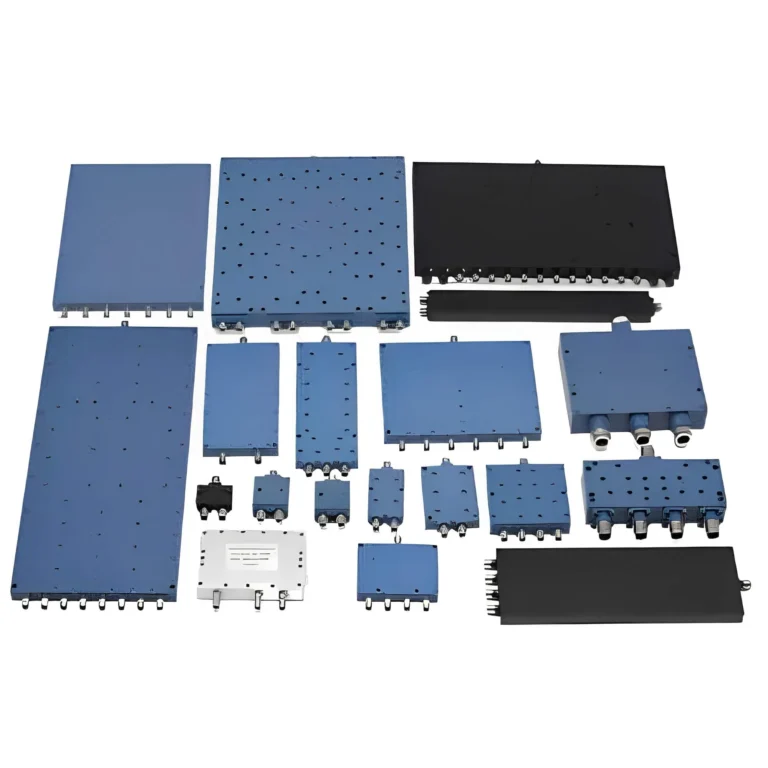

High-performance RF power dividers with ultra-low insertion loss, excellent phase and amplitude balance, and high isolation. Engineered for precision signal distribution in high-frequency applications, supporting up to 128-way configurations.

● Freq.range:0.03-70GHz

● 2-way to 128-way

● High Isolation, Low VSWR

● Stable for military environment

● Customization is available

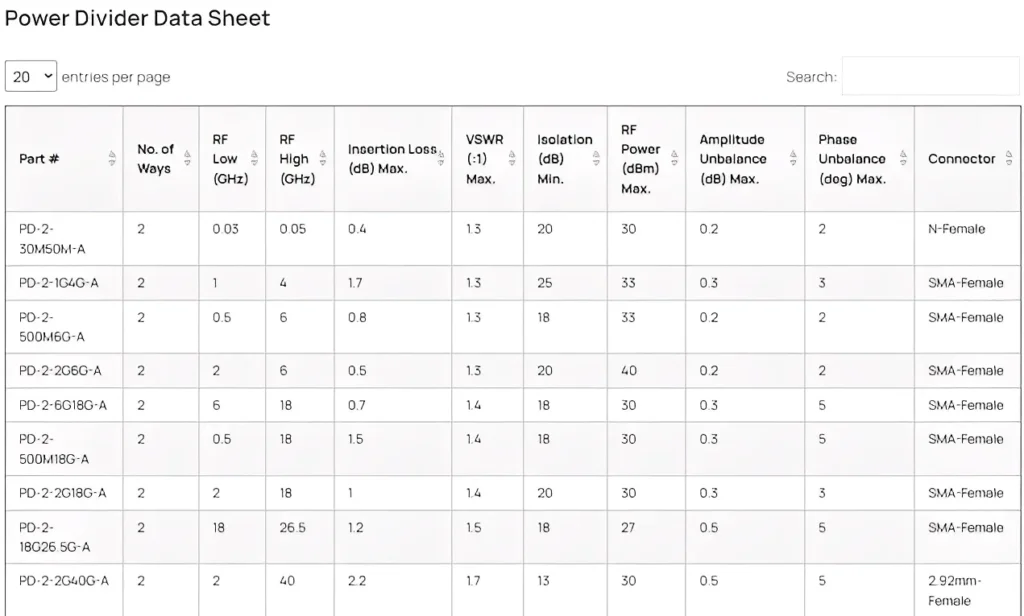

Power Divider Data Sheet

Part #	No. of Ways	RF Low (GHz)	RF High (GHz)	Insertion Loss (dB) Max.	VSWR (:1) Max.	Isolation (dB) Min.	RF Power (dBm) Max.	Amplitude Unbalance (dB) Max.	Phase Unbalance (deg) Max.	Connector
PD-2-30M50M-A	2	0.03	0.05	0.4	1.3	20	30	0.2	2	N-Female
PD-2-1G4G-A	2	1	4	1.7	1.3	25	33	0.3	3	SMA-Female
PD-2-500M6G-A	2	0.5	6	0.8	1.3	18	33	0.2	2	SMA-Female
PD-2-2G6G-A	2	2	6	0.5	1.3	20	40	0.2	2	SMA-Female
PD-2-6G18G-A	2	6	18	0.7	1.4	18	30	0.3	5	SMA-Female
PD-2-500M18G-A	2	0.5	18	1.5	1.4	18	30	0.3	5	SMA-Female
PD-2-2G18G-A	2	2	18	1	1.4	20	30	0.3	3	SMA-Female
PD-2-18G26.5G-A	2	18	26.5	1.2	1.5	18	27	0.5	5	SMA-Female

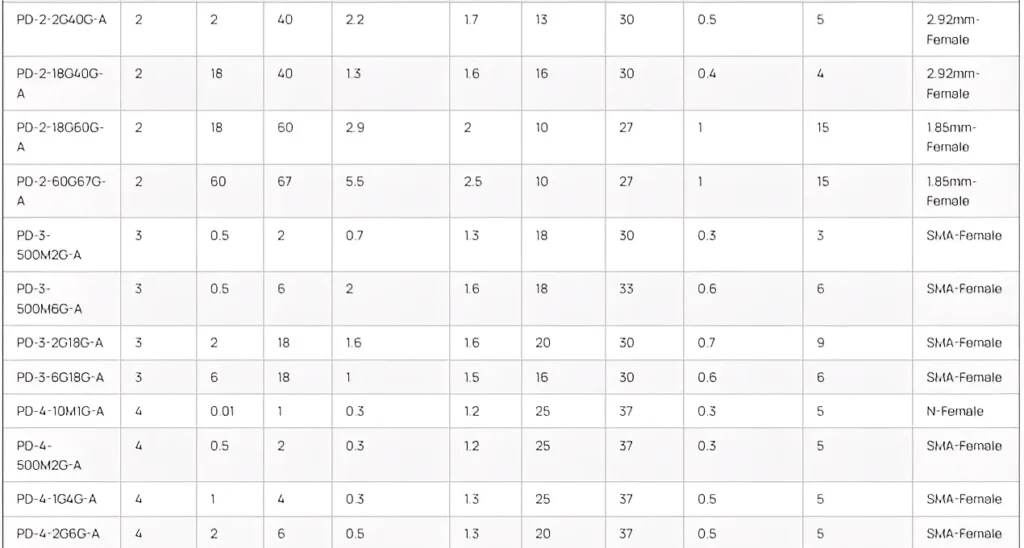

PD-2-2G40G-A	2	2	40	2.2	1.7	13	30	0.5	5	2.92mm-Female
PD-2-18G40G-A	2	18	40	1.3	1.6	16	30	0.4	4	2.92mm-Female
PD-2-18G60G-A	2	18	60	2.9	2	10	27	1	15	1.85mm-Female
PD-2-60G67G-A	2	60	67	5.5	2.5	10	27	1	15	1.85mm-Female
PD-3-500M2G-A	3	0.5	2	0.7	1.3	18	30	0.3	3	SMA-Female
PD-3-500M6G-A	3	0.5	6	2	1.6	18	33	0.6	6	SMA-Female
PD-3-2G18G-A	3	2	18	1.6	1.6	20	30	0.7	9	SMA-Female
PD-3-6G18G-A	3	6	18	1	1.5	16	30	0.6	6	SMA-Female
PD-4-10M1G-A	4	0.01	1	0.3	1.2	25	37	0.3	5	N-Female
PD-4-500M2G-A	4	0.5	2	0.3	1.2	25	37	0.3	5	SMA-Female
PD-4-1G4G-A	4	1	4	0.3	1.3	25	37	0.5	5	SMA-Female
PD-4-2G6G-A	4	2	6	0.5	1.3	20	37	0.5	5	SMA-Female

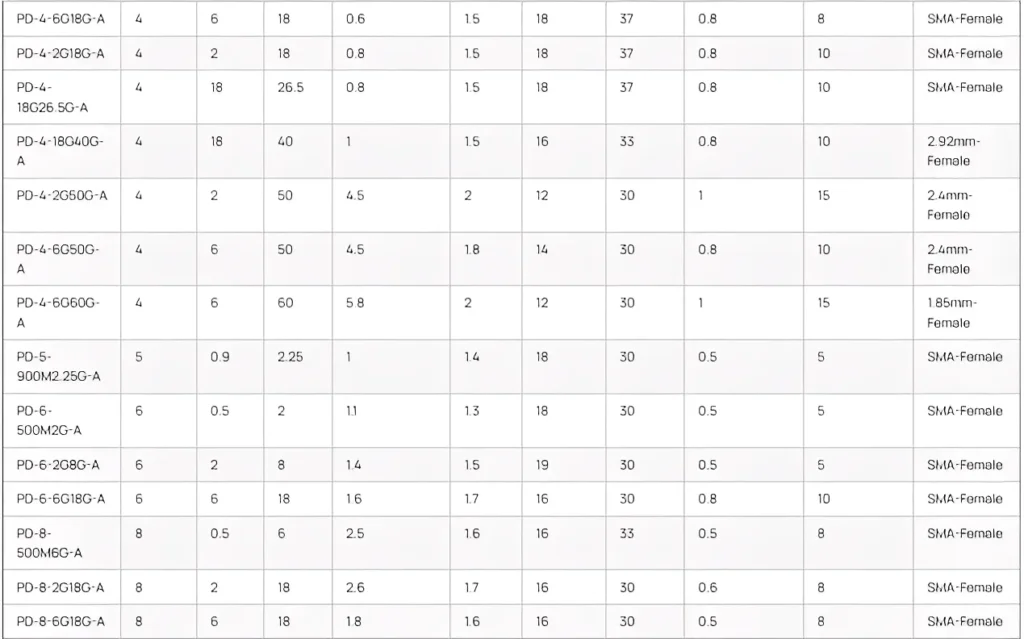

PD-4-6G18G-A	4	6	18	0.6	1.5	18	37	0.8	8	SMA-Female
PD-4-2G18G-A	4	2	18	0.8	1.5	18	37	0.8	10	SMA-Female
PD-4-18G26.5G-A	4	18	26.5	0.8	1.5	18	37	0.8	10	SMA-Female
PD-4-18G40G-A	4	18	40	1	1.5	16	33	0.8	10	2.92mm-Female
PD-4-2G50G-A	4	2	50	4.5	2	12	30	1	15	2.4mm-Female
PD-4-6G50G-A	4	6	50	4.5	1.8	14	30	0.8	10	2.4mm-Female
PD-4-6G60G-A	4	6	60	5.8	2	12	30	1	15	1.85mm-Female
PD-5-900M2.25G-A	5	0.9	2.25	1	1.4	18	30	0.5	5	SMA-Female
PD-6-500M2G-A	6	0.5	2	1.1	1.3	18	30	0.5	5	SMA-Female
PD-6-2G8G-A	6	2	8	1.4	1.5	19	30	0.5	5	SMA-Female
PD-6-6G18G-A	6	6	18	1.6	1.7	16	30	0.8	10	SMA-Female
PD-8-500M6G-A	8	0.5	6	2.5	1.6	16	33	0.5	8	SMA-Female
PD-8-2G18G-A	8	2	18	2.6	1.7	16	30	0.6	8	SMA-Female

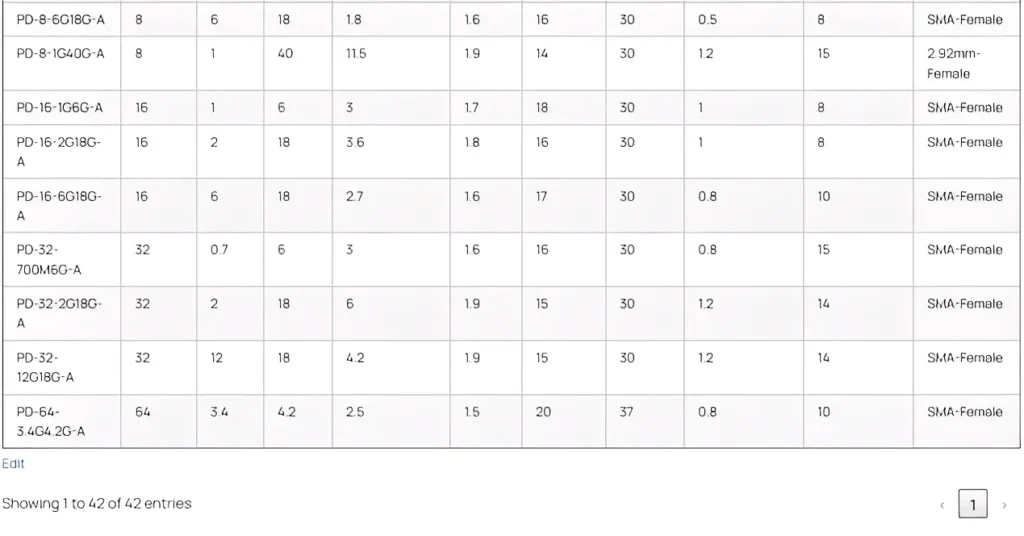

PD-8-6G18G-A	8	6	18	1.8	1.6	16	30	0.5	8	SMA-Female
PD-8-1G40G-A	8	1	40	11.5	1.9	14	30	1.2	15	2.92mm-Female
PD-16-1G6G-A	16	1	6	3	1.7	18	30	1	8	SMA-Female
PD-16-2G18G-A	16	2	18	3.6	1.8	16	30	1	8	SMA-Female
PD-16-6G18G-A	16	6	18	2.7	1.6	17	30	0.8	10	SMA-Female
PD-32-700M6G-A	32	0.7	6	3	1.6	16	30	0.8	15	SMA-Female
PD-32-2G18G-A	32	2	18	6	1.9	15	30	1.2	14	SMA-Female
PD-32-12G18G-A	32	12	18	4.2	1.9	15	30	1.2	14	SMA-Female
PD-64-3.4G4.2G-A	64	3.4	4.2	2.5	1.5	20	37	0.8	10	SMA-Female

Let's talk about your needs

If you can’t find exactly what you are looking for, tell us about your frequency range, power requirements, and specific application areas, and we’ll immediately provide a solution.

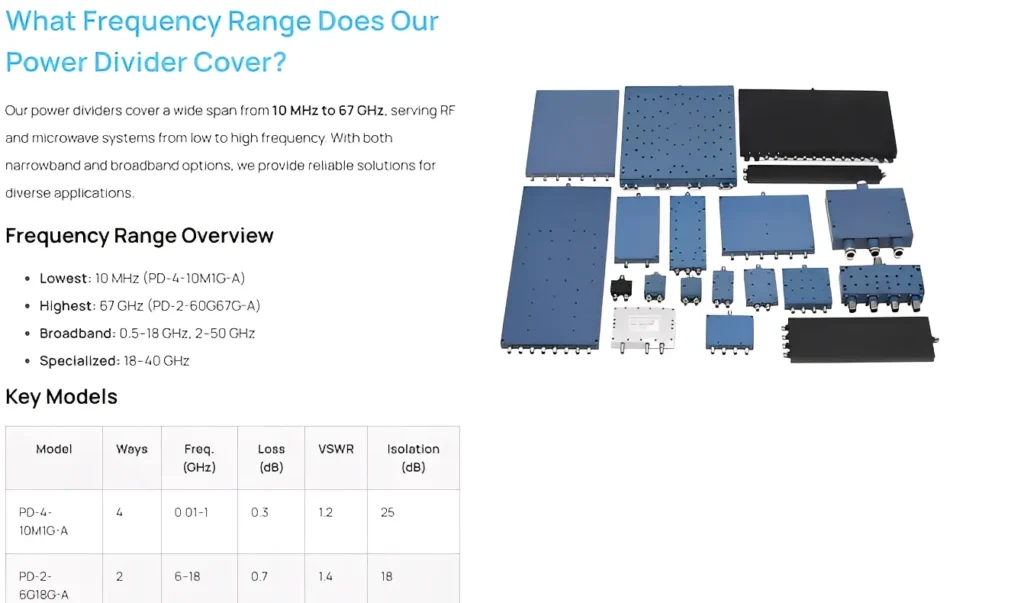

What Frequency Range Does Our Power Divider Cover?

Our power dividers cover a wide span from 10 MHz to 67 GHz, serving RF and microwave systems from low to high frequency. With both narrowband and broadband options, we provide reliable solutions for diverse applications.

Frequency Range Overview

Lowest: 10 MHz (PD-4-10M1G-A)
Highest: 67 GHz (PD-2-60G67G-A)
Broadband: 0.5–18 GHz, 2–50 GHz
Specialized: 18–40 GHz

Key Models

Model	Ways	Freq. (GHz)	Loss (dB)	VSWR	Isolation (dB)
PD-4-10M1G-A	4	0.01–1	0.3	1.2	25
PD-2-6G18G-A	2	6–18	0.7	1.4	18
PD-2-18G40G-A	2	18–40	1.3	1.6	16
PD-4-6G50G-A	4	6–50	4.5	1.8	14
PD-2-60G67G-A	2	60–67	5.5	2.5	10

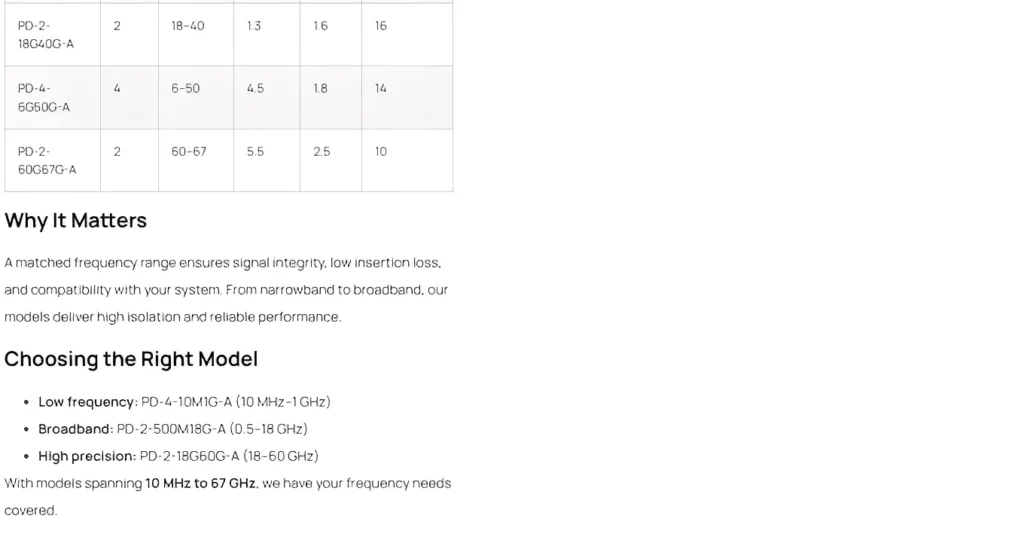

Why It Matters

A matched frequency range ensures signal integrity, low insertion loss, and compatibility with your system. From narrowband to broadband, our models deliver high isolation and reliable performance.

Choosing the Right Model

Low frequency: PD-4-10M1G-A (10 MHz–1 GHz)
Broadband: PD-2-500M18G-A (0.5–18 GHz)
High precision: PD-2-18G60G-A (18–60 GHz)

With models spanning 10 MHz to 67 GHz, we have your frequency needs covered.
