Electro-mechanical Relay Switch

A variety of products and technical details are being refreshed and made available.

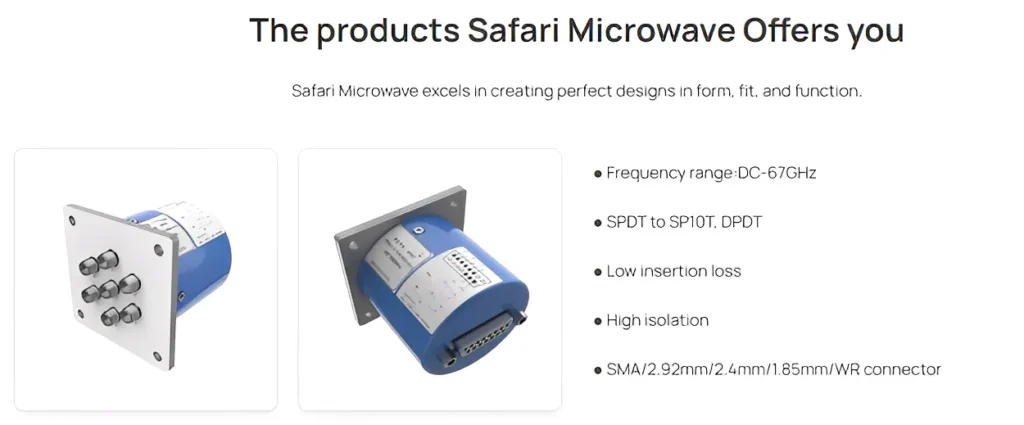

The products Safari Microwave Offers you

Safari Microwave excels in creating perfect designs in form, fit, and function.

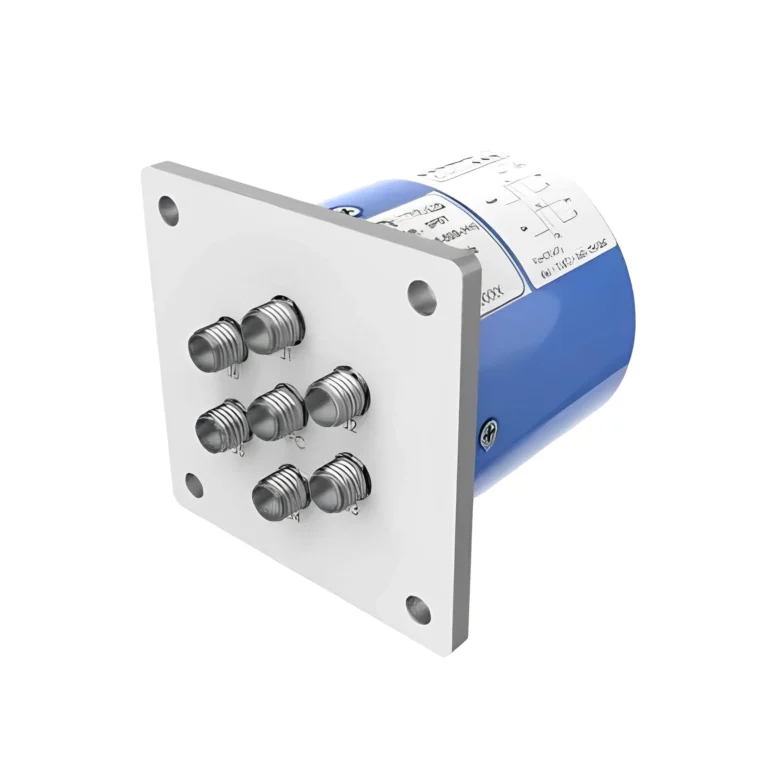

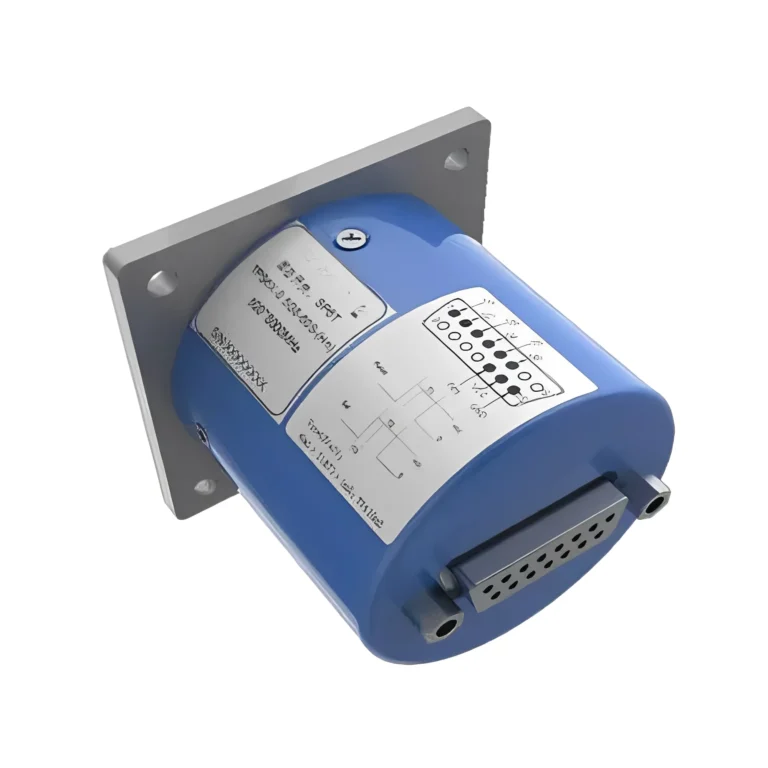

Electro-mechanical Relay Switches
Electro-mechanical Relay Switches
● Frequency range:DC-67GHz

● SPDT to SP10T, DPDT

● Low insertion loss

● High isolation

● SMA/2.92mm/2.4mm/1.85mm/WR connector

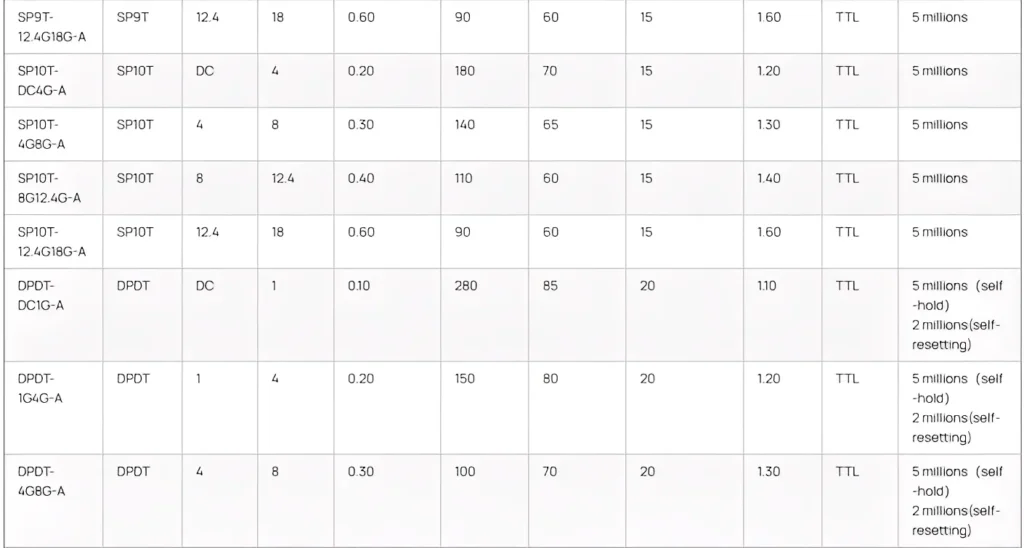

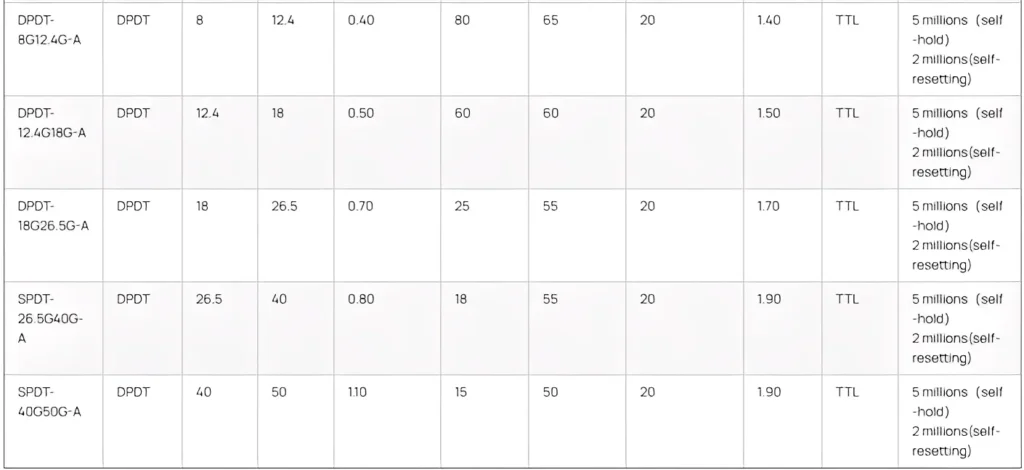

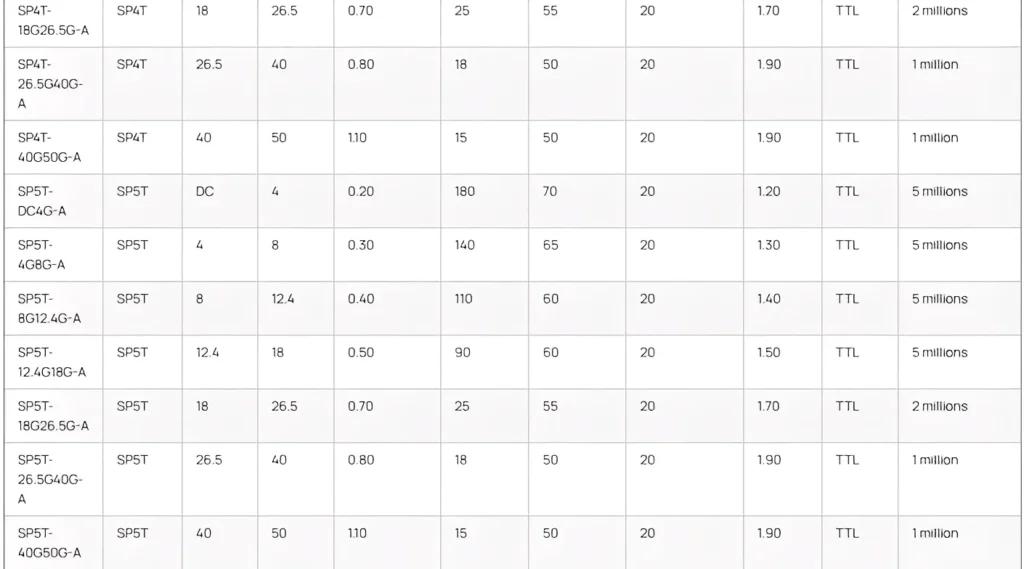

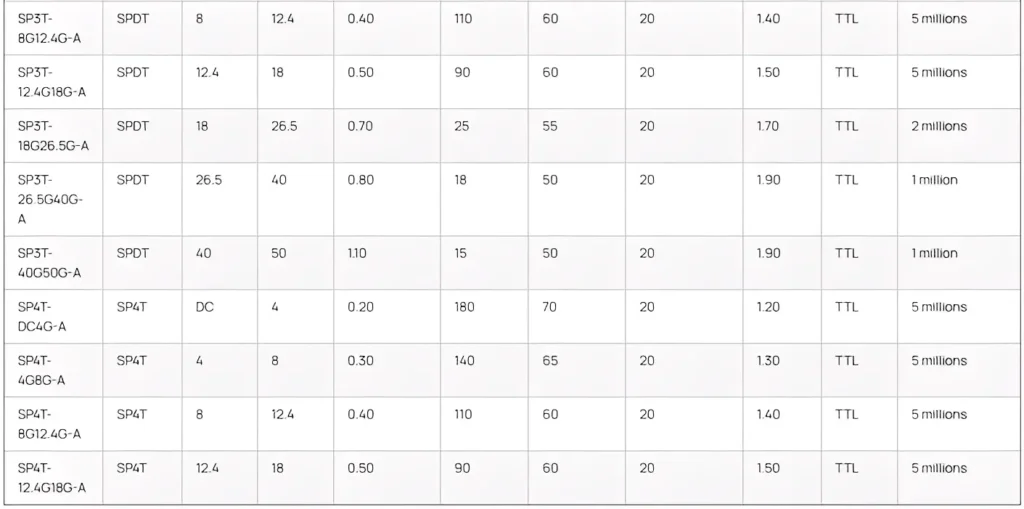

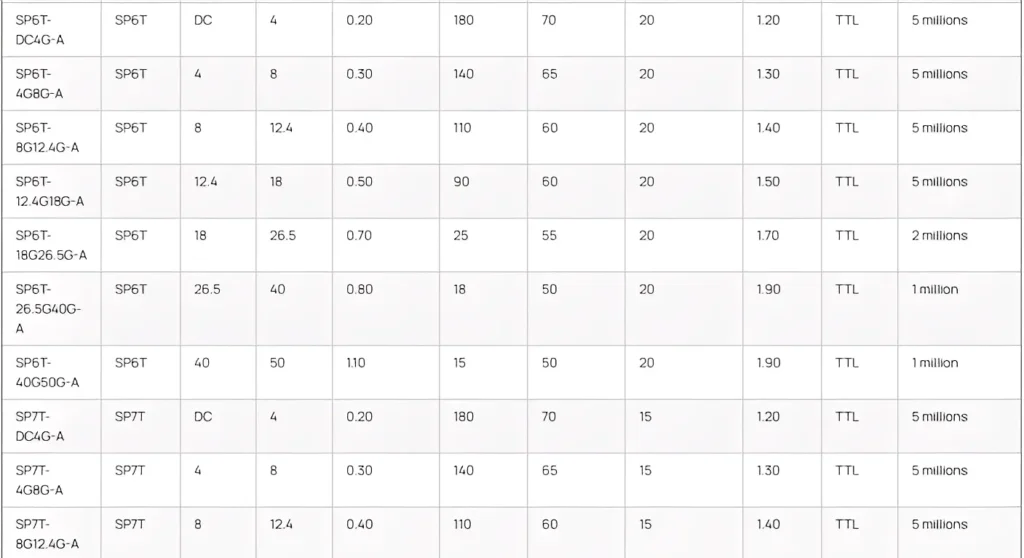

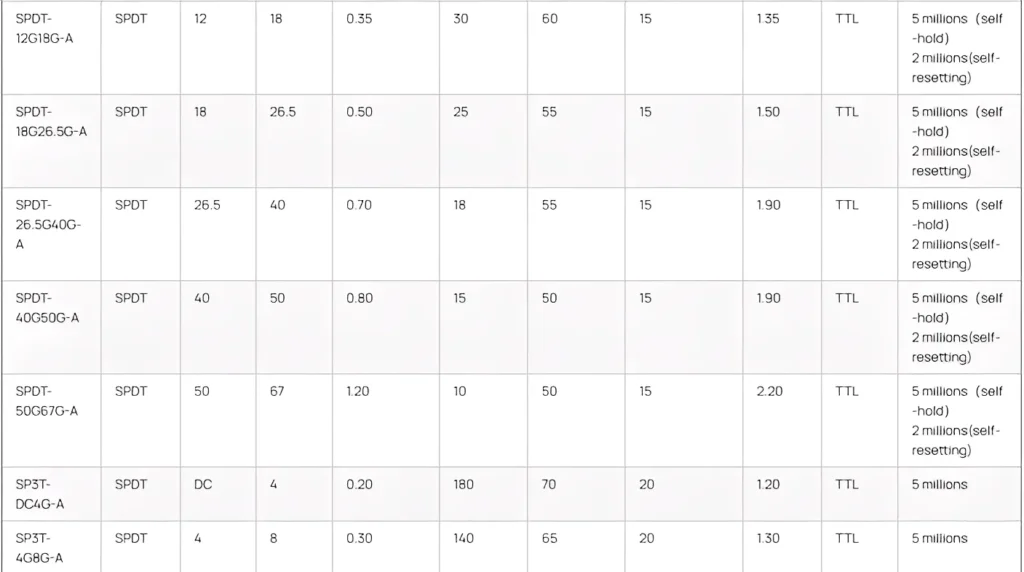

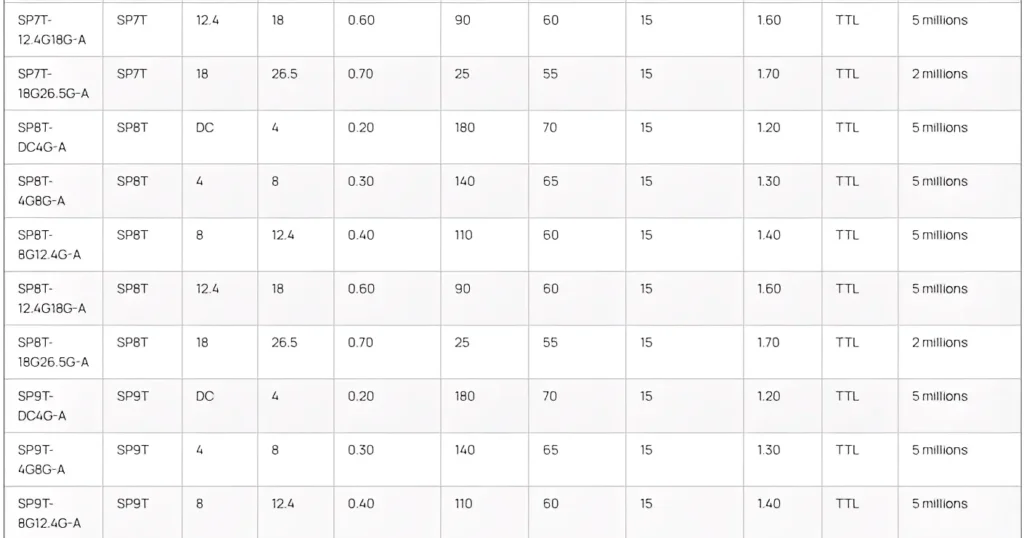

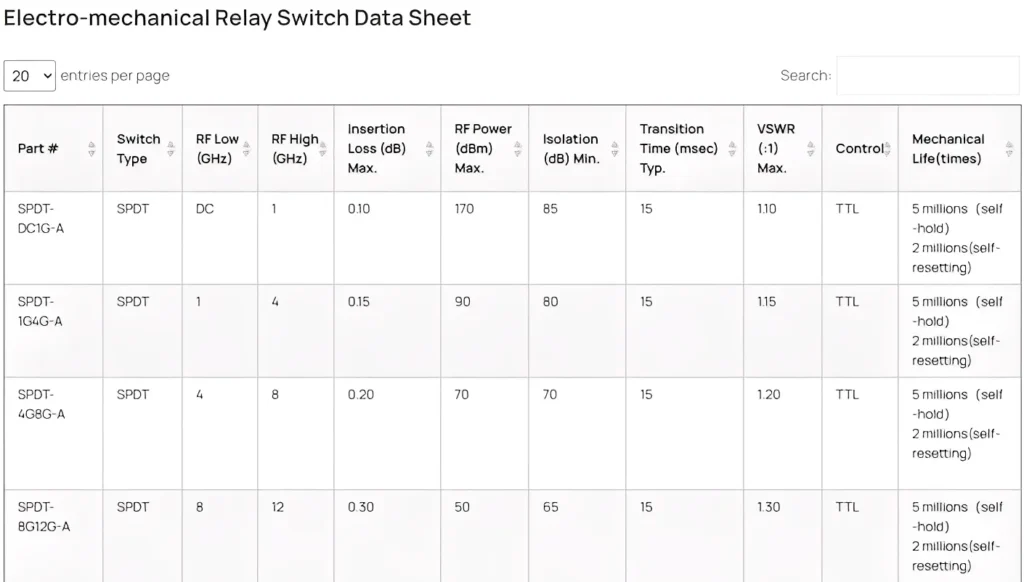

Electro-mechanical Relay Switch Data Sheet

Part #Switch TypeRF Low (GHz)RF High (GHz)Insertion Loss (dB) Max.RF Power (dBm) Max.Isolation (dB) Min.Transition Time (msec) Typ.VSWR (:1) Max.ControlMechanical Life(times)
SPDT-DC1G-ASPDTDC10.1017085151.10TTL5 millions（self -hold）
2 millions(self-resetting)
SPDT-1G4G-ASPDT140.159080151.15TTL5 millions（self -hold）
2 millions(self-resetting)
SPDT-4G8G-ASPDT480.207070151.20TTL5 millions（self -hold）
2 millions(self-resetting)
SPDT-8G12G-ASPDT8120.305065151.30TTL5 millions（self -hold）
2 millions(self-resetting)
SPDT-12G18G-ASPDT12180.353060151.35TTL5 millions（self -hold）
2 millions(self-resetting)
SPDT-18G26.5G-ASPDT1826.50.502555151.50TTL5 millions（self -hold）
2 millions(self-resetting)
SPDT-26.5G40G-ASPDT26.5400.701855151.90TTL5 millions（self -hold）
2 millions(self-resetting)
SPDT-40G50G-ASPDT40500.801550151.90TTL5 millions（self -hold）
2 millions(self-resetting)
SPDT-50G67G-ASPDT50671.201050152.20TTL5 millions（self -hold）
2 millions(self-resetting)
SP3T-DC4G-ASPDTDC40.2018070201.20TTL5 millions
SP3T-4G8G-ASPDT480.3014065201.30TTL5 millions
SP3T-8G12.4G-ASPDT812.40.4011060201.40TTL5 millions
SP3T-12.4G18G-ASPDT12.4180.509060201.50TTL5 millions
SP3T-18G26.5G-ASPDT1826.50.702555201.70TTL2 millions
SP3T-26.5G40G-ASPDT26.5400.801850201.90TTL1 million
SP3T-40G50G-ASPDT40501.101550201.90TTL1 million
SP4T-DC4G-ASP4TDC40.2018070201.20TTL5 millions
SP4T-4G8G-ASP4T480.3014065201.30TTL5 millions
SP4T-8G12.4G-ASP4T812.40.4011060201.40TTL5 millions
SP4T-12.4G18G-ASP4T12.4180.509060201.50TTL5 millions
SP4T-18G26.5G-ASP4T1826.50.702555201.70TTL2 millions
SP4T-26.5G40G-ASP4T26.5400.801850201.90TTL1 million
SP4T-40G50G-ASP4T40501.101550201.90TTL1 million
SP5T-DC4G-ASP5TDC40.2018070201.20TTL5 millions
SP5T-4G8G-ASP5T480.3014065201.30TTL5 millions
SP5T-8G12.4G-ASP5T812.40.4011060201.40TTL5 millions
SP5T-12.4G18G-ASP5T12.4180.509060201.50TTL5 millions
SP5T-18G26.5G-ASP5T1826.50.702555201.70TTL2 millions
SP5T-26.5G40G-ASP5T26.5400.801850201.90TTL1 million
SP5T-40G50G-ASP5T40501.101550201.90TTL1 million
SP6T-DC4G-ASP6TDC40.2018070201.20TTL5 millions
SP6T-4G8G-ASP6T480.3014065201.30TTL5 millions
SP6T-8G12.4G-ASP6T812.40.4011060201.40TTL5 millions
SP6T-12.4G18G-ASP6T12.4180.509060201.50TTL5 millions
SP6T-18G26.5G-ASP6T1826.50.702555201.70TTL2 millions
SP6T-26.5G40G-ASP6T26.5400.801850201.90TTL1 million
SP6T-40G50G-ASP6T40501.101550201.90TTL1 million
SP7T-DC4G-ASP7TDC40.2018070151.20TTL5 millions
SP7T-4G8G-ASP7T480.3014065151.30TTL5 millions
SP7T-8G12.4G-ASP7T812.40.4011060151.40TTL5 millions
SP7T-12.4G18G-ASP7T12.4180.609060151.60TTL5 millions
SP7T-18G26.5G-ASP7T1826.50.702555151.70TTL2 millions
SP8T-DC4G-ASP8TDC40.2018070151.20TTL5 millions
SP8T-4G8G-ASP8T480.3014065151.30TTL5 millions
SP8T-8G12.4G-ASP8T812.40.4011060151.40TTL5 millions
SP8T-12.4G18G-ASP8T12.4180.609060151.60TTL5 millions
SP8T-18G26.5G-ASP8T1826.50.702555151.70TTL2 millions
SP9T-DC4G-ASP9TDC40.2018070151.20TTL5 millions
SP9T-4G8G-ASP9T480.3014065151.30TTL5 millions
SP9T-8G12.4G-ASP9T812.40.4011060151.40TTL5 millions
SP9T-12.4G18G-ASP9T12.4180.609060151.60TTL5 millions
SP10T-DC4G-ASP10TDC40.2018070151.20TTL5 millions
SP10T-4G8G-ASP10T480.3014065151.30TTL5 millions
SP10T-8G12.4G-ASP10T812.40.4011060151.40TTL5 millions
SP10T-12.4G18G-ASP10T12.4180.609060151.60TTL5 millions
DPDT-DC1G-ADPDTDC10.1028085201.10TTL5 millions（self -hold）
2 millions(self-resetting)
DPDT-1G4G-ADPDT140.2015080201.20TTL5 millions（self -hold）
2 millions(self-resetting)
DPDT-4G8G-ADPDT480.3010070201.30TTL5 millions（self -hold）
2 millions(self-resetting)
DPDT-8G12.4G-ADPDT812.40.408065201.40TTL5 millions（self -hold）
2 millions(self-resetting)
DPDT-12.4G18G-ADPDT12.4180.506060201.50TTL5 millions（self -hold）
2 millions(self-resetting)
DPDT-18G26.5G-ADPDT1826.50.702555201.70TTL5 millions（self -hold）
2 millions(self-resetting)
SPDT-26.5G40G-ADPDT26.5400.801855201.90TTL5 millions（self -hold）
2 millions(self-resetting)
SPDT-40G50G-ADPDT40501.101550201.90TTL5 millions（self -hold）
2 millions(self-resetting)
