Directional Coupler

A variety of products and technical details are being refreshed and made available.

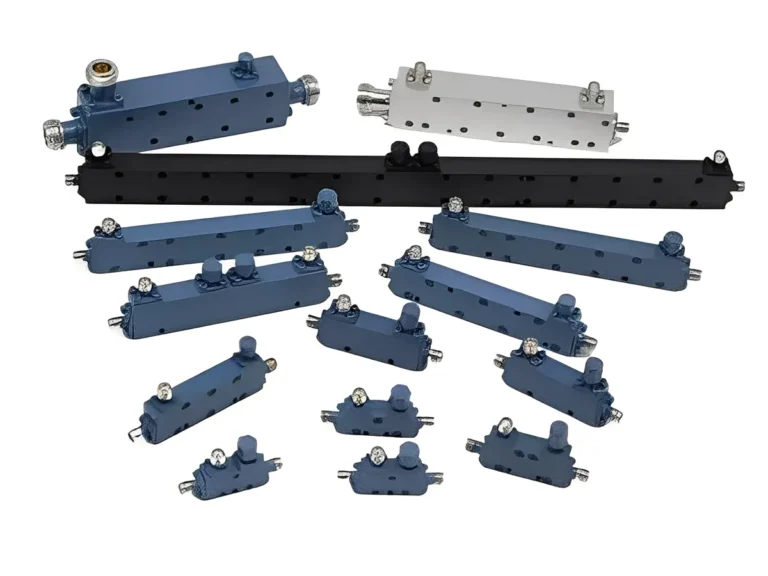

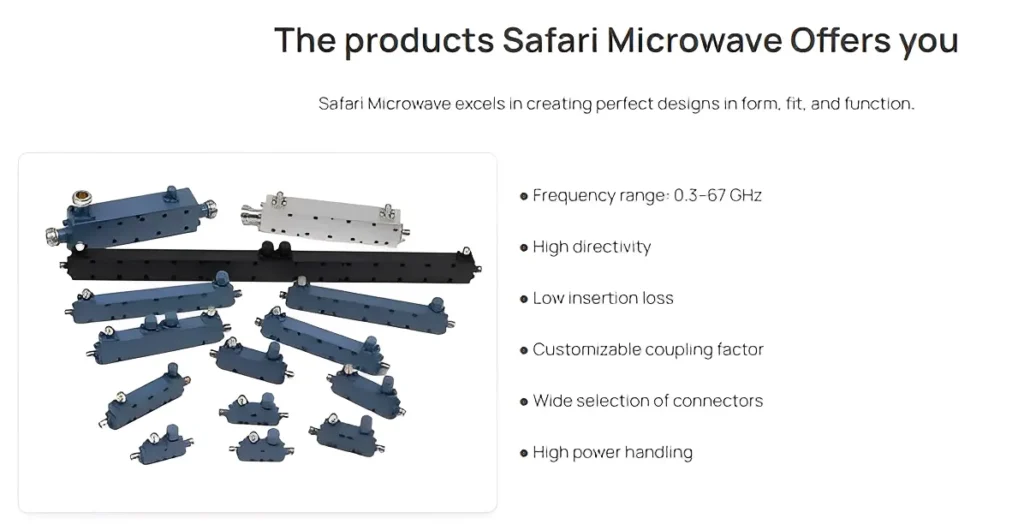

The products Safari Microwave Offers you

Safari Microwave excels in creating perfect designs in form, fit, and function.

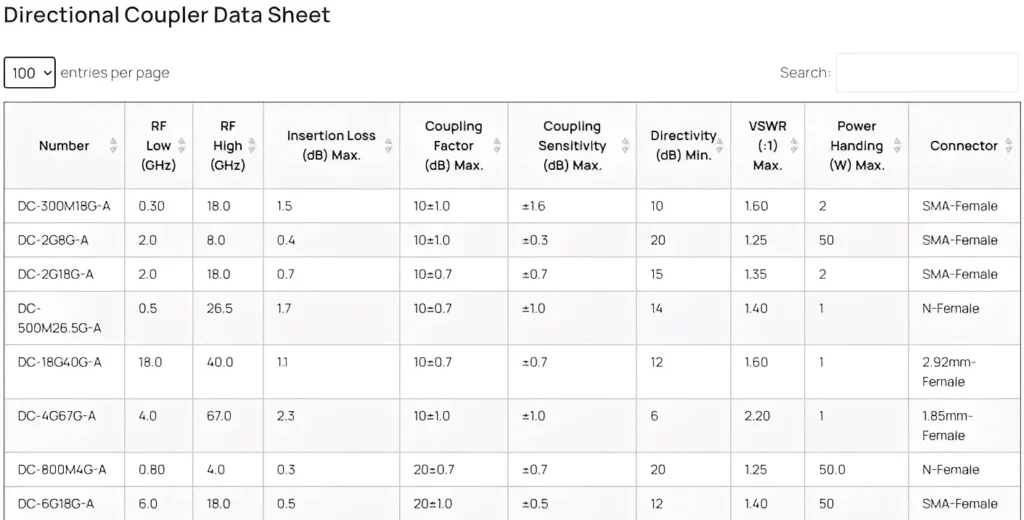

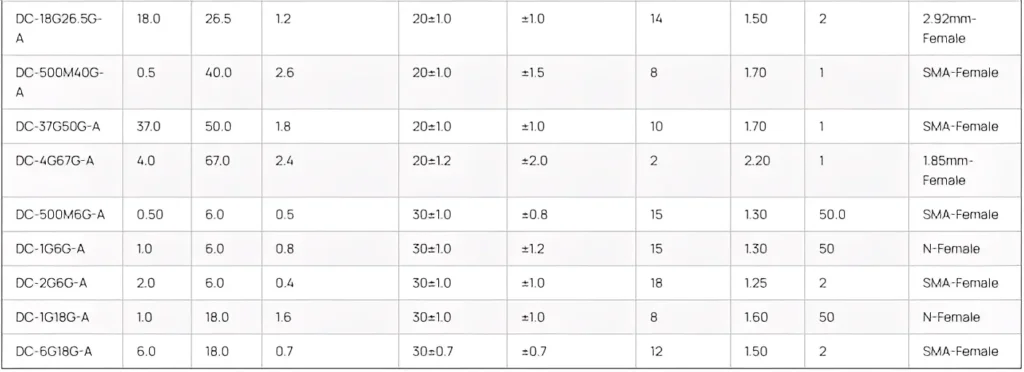

Directional Coupler Date Sheet

Number	RF Low (GHz)	RF High (GHz)	Insertion Loss (dB) Max.	Coupling Factor (dB) Max.	Coupling Sensitivity (dB) Max.	Directivity (dB) Min.	VSWR (:1) Max.	Power Handing (W) Max.	Connector
1	0.30	18.0	1.5	10±1.0	±1.6	10	1.60	2	SMA-Female
2	2.0	8.0	0.4	10±1.0	±0.3	20	1.25	50	SMA-Female
3	2.0	18.0	0.7	10±0.7	±0.7	15	1.35	2	SMA-Female
4	0.5	26.5	1.7	10±0.7	±1.0	14	1.40	1	N-Female
5	18.0	40.0	1.1	10±0.7	±0.7	12	1.60	1	2.92mm-Female
6	4.0	67.0	2.3	10±1.0	±1.0	6	2.20	1	1.85mm-Female
7	0.80	4.0	0.3	20±0.7	±0.7	20	1.25	50.0	N-Female
8	6.0	18.0	0.5	20±1.0	±0.5	12	1.40	50	SMA-Female
9	18.0	26.5	1.2	20±1.0	±1.0	14	1.50	2	2.92mm-Female
10	0.5	40.0	2.6	20±1.0	±1.5	8	1.70	1	SMA-Female
11	37.0	50.0	1.8	20±1.0	±1.0	10	1.70	1	SMA-Female
12	4.0	67.0	2.4	20±1.2	±2.0	2	2.20	1	1.85mm-Female
13	0.50	6.0	0.5	30±1.0	±0.8	15	1.30	50.0	SMA-Female
14	1.0	6.0	0.8	30±1.0	±1.2	15	1.30	50	N-Female
15	2.0	6.0	0.4	30±1.0	±1.0	18	1.25	2	SMA-Female
16	1.0	18.0	1.6	30±1.0	±1.0	8	1.60	50	N-Female
17	6.0	18.0	0.7	30±0.7	±0.7	12	1.50	2	SMA-Female

Advanced Technology & Performance Safari Microwave’s broadband low noise amplifiers feature hybrid microwave integrated circuits and advanced GaAs pHEMT technology, ensuring superior performance.

Unmatched Stability & Protection These amplifiers are unconditionally stable with built-in voltage regulation, bias sequencing, and reverse bias protection, along with external over-voltage protection for easy repair.

Internal Matching Fully matched for 50 Ohm impedance, they eliminate the need for additional sensitive external RF tuning components.

Durable & Versatile Housed in hermetically sealed modules, they operate from -55°C to +85°C and offer various gain levels, frequency ranges, and power outputs.

Immediate Availability With a commitment to excellence, we stock a large variety of high-quality amplification products for immediate worldwide shipment.

Let's talk about your needs

If you can’t find exactly what you are looking for, tell us about your frequency range, power requirements, and specific application areas, and we’ll immediately provide a solution.

What is NB LNA?

An NB LNA, or Narrowband Low Noise Amplifier, is a type of amplifier designed to amplify signals within a specific, narrow frequency range while minimizing noise. These amplifiers are used to enhance weak signals without significantly adding noise, making them ideal for applications where signal clarity is crucial. Key Features of NB LNA: Frequency Specificity: Designed to operate effectively within a narrow frequency band, which helps in achieving better signal-to-noise ratio (SNR) within that range. Low Noise Figure: They introduce minimal additional noise to the amplified signal, making them ideal for applications requiring high sensitivity. High Gain: Provides significant amplification for weak signals within the target frequency range. Common Applications: RF and Microwave Communications: Such as satellite communication, cellular base stations, and radar systems. Wireless Communication Systems: Including Wi-Fi, Bluetooth, and narrowband IoT applications. Testing and Measurement Equipment: Where precise amplification of specific frequencies is necessary.
